Home > Products > CNC LATHE > CK50L CE Certification High Speed China Cnc Lathe Machine

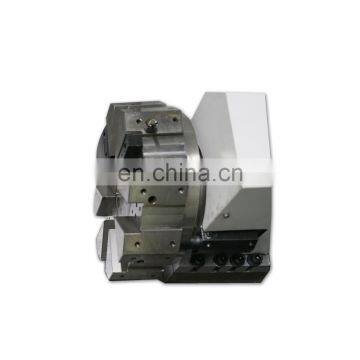

CK50L CE Certification High Speed China Cnc Lathe Machine

FOB Price

USD $9,900 - $25,900 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao Port for CK50L CE Certification High Speed China Cnc Lathe Machine
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HANKUI	Place of Origin	Shandong, China
Model Number	Ck50L	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Product Description

Technical parameter

ITEM		CK-32L	CK-36L	CK-40L	CK-50L	CK-63L	CK-80L
Processing range	Max.swing over bed	320	360	400	500	660	800
	Max.swing over slide	160	160	220	320	500	640
	Max. processing length	350	350	450	550	890	890
	Max. cutting dia.(disc type)	200	254	360	420	630	800
	Max. bar dia.	40	55	55	80	80	90
spindle	Spindle speed	4000	4000	3500	2500	2200	1500
	Spindle nose ISO form	A2-5	A2-5	A2-5	A2-8	A2-8	A2-11
	Thru-hole dia.	41	58	58	86	86	112
	Chunk dia.	160（6“）	200（8“）	200（8“）	250（10“）	320（12“）	380（15“）
	Motor power	3.7(servo)	3.7/5.5 (servo)		5.5/7.5/11(servo)	11/15 (servo)	18~22 (servo)
Body structure	Body structure	45°integrated	30°integrated	30°integrated	30°integrated	30°integrated	30°integrated
	X axis travel	200	200	210	260	410	410
	Zaxis travel	350	350	450	550	860	860
	X/Z axis rapid speed	24/24	24/24	24/24	24/24	18/18	18/18
Tool holder	type		63-8T	80-8T	100-8T	160-8T	160-8T
Tool holder	Tool size	20*20	20*20	20*20	25*25	25*25	25*25
tailstock	Tailstock sleeve dia.	/	52	52	75	150	150
	Tailstock sleeve travel	/	60	60	100	150	150
	Tailstock sleeve taper	/	MT4	MT4	MT5	MT5	MT5
precision	Processing precision	IT6
	Repositioning precision	X:0.006, Z:0.008					X:0.006，Z:0.01
	roughness	Ra.≤0.8					Ra.≤1.25
dimension	N.W (KG)	1500	1700	2700	3500	5500	5600
dimension	Dimension (M)	1.61.41.6	1.81.61.6	2.81.61.6	3.11.81.8	3.82.22.2	3.82.22.2

Detailed Images

Our company

Other Products

Photo with Clients

Packing & Delivery

FAQ

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.

Q: What sales terms do you have?
A:T/T, L/C,West Union.

Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,

Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
