Home > Products > CNC LATHE > CK36L Cnc Controller Steel Lathe Machine With Servo Spindle Motor

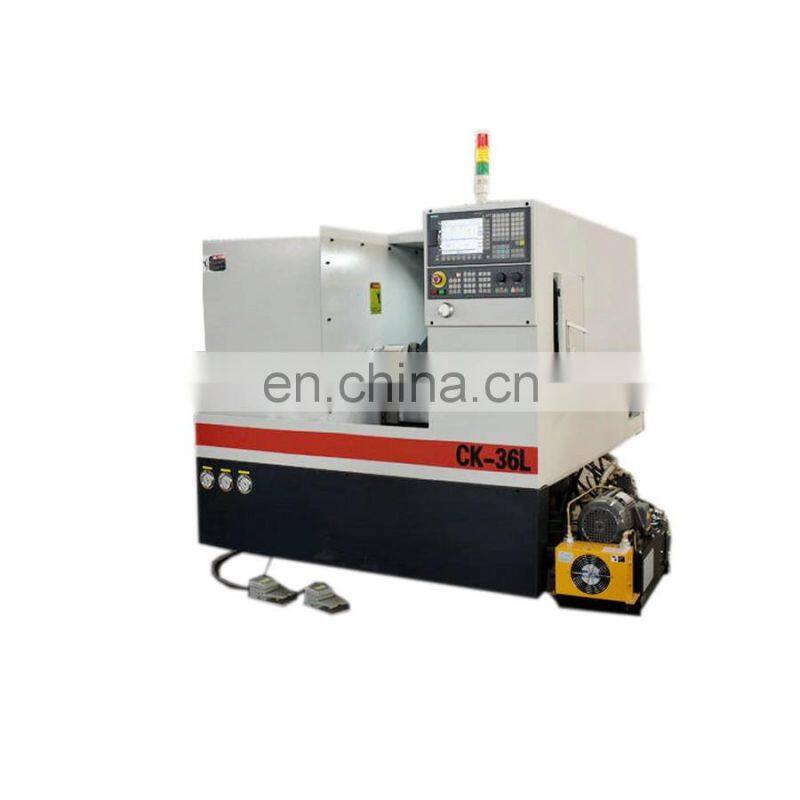

CK36L Cnc Controller Steel Lathe Machine With Servo Spindle Motor

FOB Price

US$ 20,000 - 30,000 / Set

1 Set(Min. Order)

Port Qingdao port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Hankui/Hunk/OEM		Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Product Description

Video

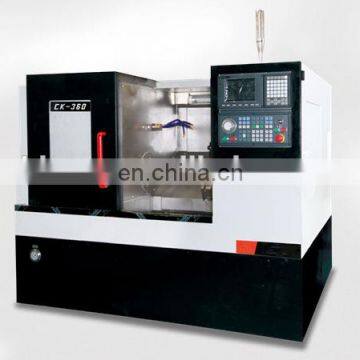

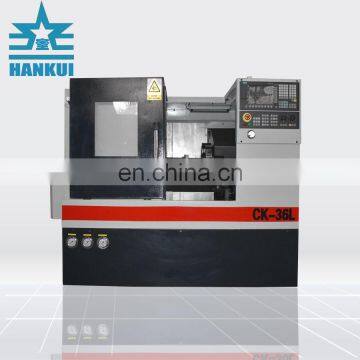

CK36L Cnc Controller Steel Lathe Machine with Servo Spindle Motor

Our Company

Jinan Hankui international trade co., ltd,

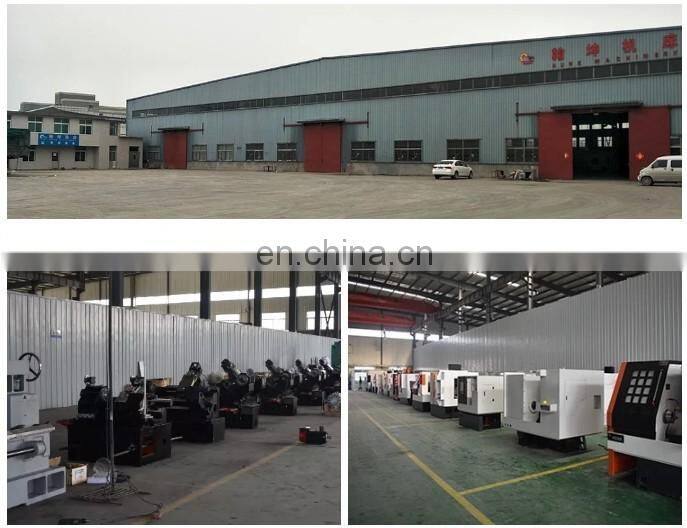

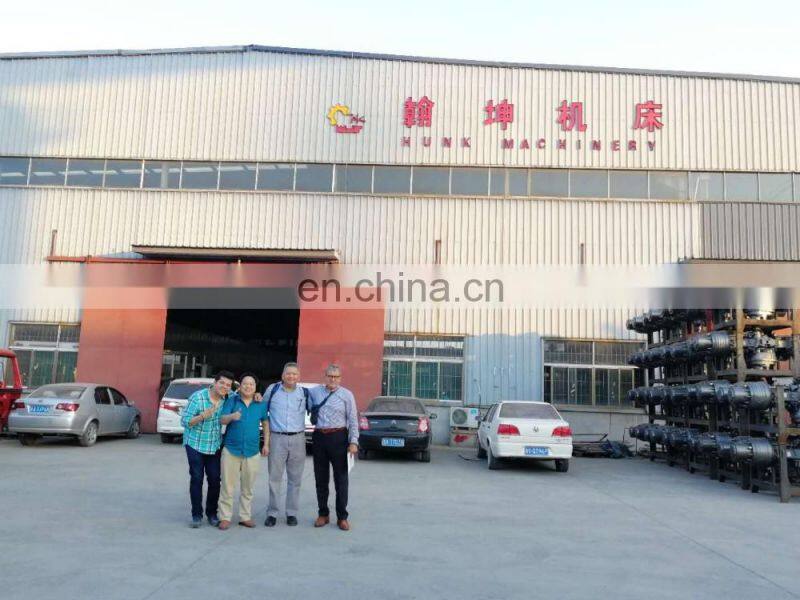

which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

With good quality and professional service, our company cooperate with the customers from India, Mexico, USA, Turkey, Norway, Bangladesh, Indonesia, Pakistan,Syria and so on. There is 24 hour online servive and oversea technology support in our company.

We have passed the ISO9001:2008 , SGS, CE international quality management system authentication. "Honest and trust, Customer ahead, pursuit of excellent", we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.

Main Configuration

For more details configuration, pls contact us directly.

Standard Configuration:

1) 5.5kw servo motor, max. spindle speed 4000rpm, spindle taper A2-5, spindle hole Φ56mm;

2) 8 station hydraulic tool turret hollow 8" hydraulic chuck, with tail stock;

Optional Configuration:

1) 8 station servo VDI(live tool) turret;
2) tool head,if more tool heads needed;
3) Servo 8 station tool turret;

4) 6000r spindle;
5) Chain Chip Conveyor;

Products Details

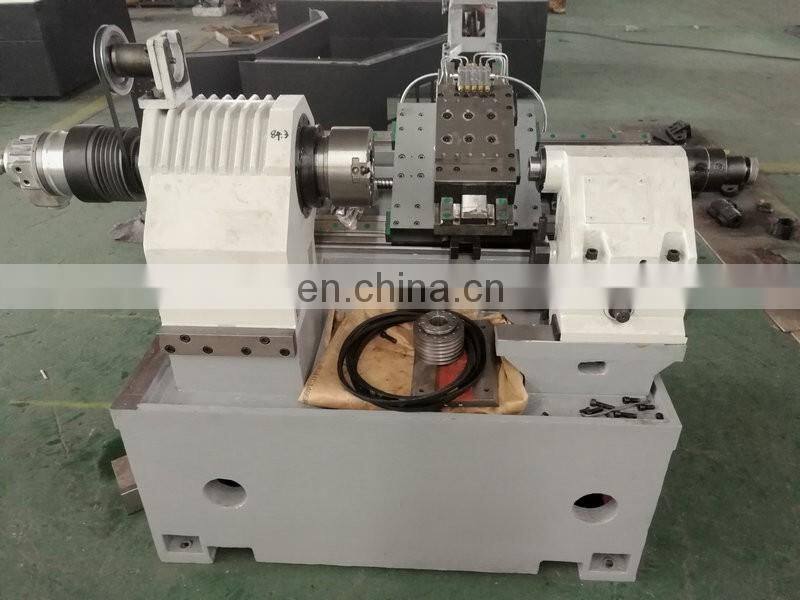

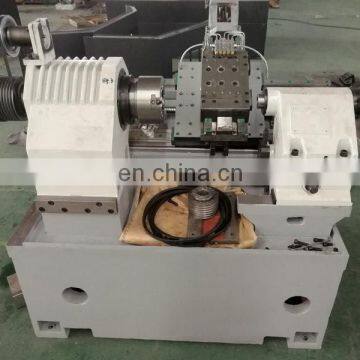

1) The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle box are all made of HT300 cast iron. The whole lathe bed and the lathe feet are all adopt 45 degrees casting structure as a whole. The compact and reasonable symmetric structure ensures high rigidity and bending vibration performance of basic parts.

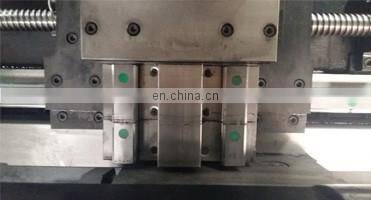

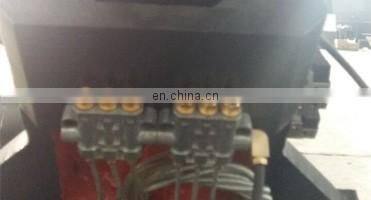

2) The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan, with fast speed, eliminating intermittent creep, high rigidity, low friction, and low noise characteristics. With automatic pressure lubrication, it improves the machine accuracy.

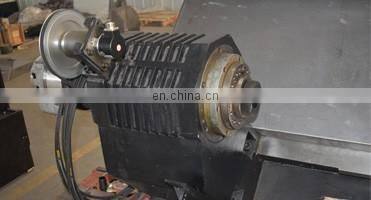

3) The spindle box adopts spindle unit which is of independent type and sleeve structure and it is equipped with high intensity special bearing for spindle.

4) In terms of lubrication, it adopts the Germany special lubricating oil of bearing, which greatly reduces the thermal deformation of spindle unit and improves the thermal stability and accuracy.

Technical parameter

ITEM		CK-32L	CK-36L	CK-40L	CK-50L	CK-63L	CK-80L
Processing range	Max.swing over bed	320	360	400	500	630	800
	Max.swing over slide	160	160	220	320	500	640
	Max. processing length	350	350	450	550	890	890
	Max. cutting dia.(disc type)	200	254	360	420	630	800
	Max. bar dia.	40	45	51	65	75	90
spindle	Spindle speed	4000	4000	3500	2500	2250	1500
	Spindle nose ISO form	A2-5	A2-5	A2-6	A2-6	A2-8	A2-11
	Thru-hole dia.	56	56	66	76	86	112
	Chunk dia.	160(6")	160(6")	200(8")	200(8")	320(12")	380(15")
	Motor power	3.7(servo)	3.7(servo)	7.5(servo)	11(servo)	18.5(servo)	22(servo)
Body structure	Body structure	30°integrated	30°integrated	45°integrated	45°integrated	30°integrated	30°integrated
	X axis travel	200	200	210	260	410	410
	Zaxis travel	350	350	450	550	860	860
	X/Z axis rapid speed		24/24	24/24	24/24	18/18	18/18
Tool holder	type		63-8T	80-8T	100-8T	160-8T	160-8T
Tool holder	Tool size	20*20	20*20	20*20	25*25	25*25	25*25
tailstock	Tailstock sleeve dia.		52	52	75	150	150
	Tailstock sleeve travel		60	60	100	150	150
	Tailstock sleeve taper		MT4	MT4	MT5	MT5	MT5
precision	Processing precision	IT6
	Repositioning precision	X:0.006,Z:0.008					X:0.006,Z:0.01
	roughness	Ra.≤0.8					Ra.≤1.25
dimension	N.W (KG)	1500	1700	2700	3500	5500	5600
dimension	Dimension (M)	1.81.21.7	1.81.61.6	2.61.81.6	3.11.81.8	3.82.22.2

Main components

The serial number	Name	Model or drawing No.	Origin	QTY	Note
1	The top		Domestic	1 set
2	X screw pair to the ball	2505	Taiwan	1 pair
3	Z screw pair to the ball	3210/P3	Taiwan	1 pair
4	Angular contact ball bearings		NSK	1 set	With screw
5	X, Z line rail		Taiwan
6	Angular contact ball bearings		NSK	2set	With screw
7	Double grinding coupling		domestic	2 set
8	Cooling pump		domestic	1 set
9	Lubrication system		domestic	1 set

Packing & Delivery

Packing Details : Packing by woodenbox or depend on request

Delivery Details : 7-45 days
