Plastic Roof Tile Making Machinery
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Other
- 45 days
You May Like
Product Details
| Brand Name | ACEMIEN | Place of Origin | China | |
| Model Number | SJZ80/156 |
Product Description

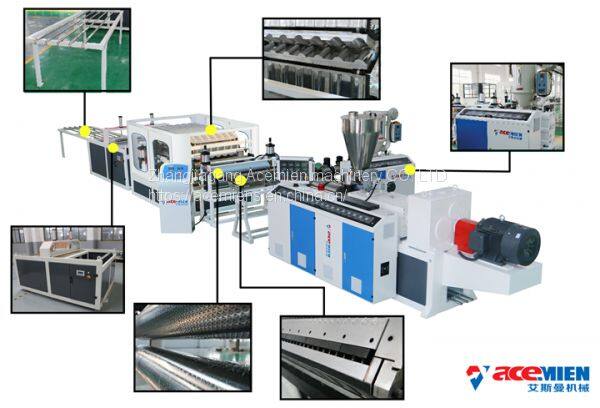

The Plastic extrusion machine is mechanotronics, with the advantages of:
1) high production efficiency;
2) reasonable structure compact;
3) convenient operation and maintenance
4) long use life etc.
Extruder | SJZS80/156 +SJ50/30 |
Mold width | 1300mm |
Max linear velocity | 5m/min |
Max traction force | 50 KN |
Cutting mode | saw-type |
Center height | 2300mm |
Max output | 400kg/h |
Drive motor | 120kw |
Machine weight | 10000kg |
Machine Size | 21*3*2.2m |
specification of the tile(Can be customized according to design) | |
Width | 880/1040mm |
wave pitch | 160mm |
wave distance | 220mm |
thickness | 1~3m |
3 layer Heat Insulated PVC Roof Sheet is manufactured based on 3 layer co-extrusion technology by one-time processing. It is an ideal building material for construction projects with heat insulation requirement. The following is a list of the distinct features of each layer material.
First layer:weather resistant resin is selected as the top layer material to block the solar ultraviolet radiation and reduce the coefficient of heat conductivity. It provides our PVC roofing material with great durability and chemical corrosion resistance;
Second layer:the middle layer is a special foam structure with heat and sound insulation performances.
Third layer:the bottom layer of our heat insulated PVC roof sheet adopts modified PVC material to offer optimum strength and rigidity.
Product instruction:
| Raw material & formulation | Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin. Surface layer: ASA granule |
| Description final product & Output | Two layers PVC+ASA Co-extrusion Glazed tile; Output:300-400kg/h(Depending on CaCO3 proportion) |
| Final product | Main tile:1set Two layers PVC+ASA Roofing tile; Width:720/880 /1040mm,Thickness: 2~3.0mm; Wave distance:160mm; Wave height:28/30mm; Wave length:220/250mm Ridge tile:4sets |
