Arc Spray Zinc Coating Machine, Thermal Spray Equipment ,hot Sale Coating Machine for Metal Sprayers

arc spray zinc coating machine, thermal spray equipment ,hot sale coating  machine for metal sprayers

1. brief introduction of arc wire zinc coating machine

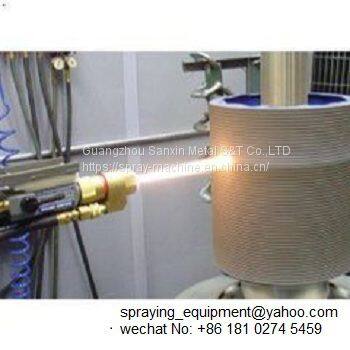

     Wire arc spray machine (sometimes referred to as twin wire arc spray) can be used for spraying zinc wire, stainless steel wire, zinc aluminum alloy wire, etc. It’s a

process that uses an electric arc to melt wires. The molten metal is then

atomised with compressed air to create a spray stream that applies the

coating onto the surface being sprayed.

2. introduction of our factory

     Our company is specialized in all kinds of thermal spraying equipment, such as high-speed arc spraying equipment. We have different kinds of arc spray machine, can adapt to different use environment. we can also supply various kinds of special spraying solid wire.

      We are a group member of China Surface Engineering Association, also the member of the National Thermal Spraying cooperation group, we passed  the ISO9001:2000 Quality Management system test, owning the thermal spraying construction certification. Our wire arc spray machine can be used for a variety of surface engineering areas projects, to improve wear-resistant, anti-corrosion, wear high-temperature, anti-cavitation, other functional thermal coating of the workpieces , or to repair the broken parts of the workpieces.

3. style of our arc spray machine

Here I will introduce you about the wire arc spray machine series:

(1)SX-150  power:7kw  gun amount:1   gas comsuption:2.3m3/min

Application: Test and Research on a small amount of spraying and coating

(2)SX-300  power:12kw  gun amount:1   gas comsuption:2.3m3/min

Application: Spray zinc and aluminum, small scale repair

(3) SX-400  power:15kw  gun amount:1   gas comsuption:2.3m3/min

Application:zinc, aluminum, partial repairing process

(4)SX-500  power:18kw  gun amount:1   gas comsuption:2.3m3/min

Application: hardware repairing, small project construction

(5) SX-600  power:21.6kw  gun amount:1   gas comsuption:2.3m3/min

Application:spray hard alloy wire, boiler construction

(6)SX-800  power:28.8kw  gun amount:2   gas comsuption:4.6m3/min

Application: Spay zinc and aluminum in big area, works automatically

(7)SX-1000  power:36kw  gun amount:2   gas comsuption:4.6m3/min

Application: project construction, big quantity process, works automatically

(8) SX-2000  power:72kw  gun amount:4   gas comsuption:9.2m3/min

Application: Big project construction, long time spraying project, large quantity of spraying work

(9) SX-4000  power:144kw  gun amount:8   gas comsuption:18.4m3/min

Application: Big project construction, long time spraying project, large quantity of spraying work

     The biggest difference of the arc spray machines above is the power ,data after code "SX "stand of  electronic current ,from 150 to 4000,then power is from 7kw to 144kw accordingly ,of course ,with different price ,you can choose the economical and practical model based on your requirement ;of course, we can recommend you after discussing more details.

4.characteristics of our arc spray machine

     SX series wire arc coating machine  is easy for operation and use. Operator only needs to control a few buttons to manage the spraying process. High efficency without hassle.

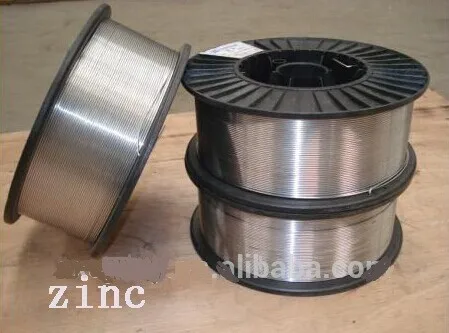

Wire arc spray machine is used for spraying zinc, aluminum, copper, molybdnum, titanium, stainless steel, high carbon steel, nickel chromium alloy, wear-resistant alloy, Babbitt alloy material, etc, which can improve the wear-resistant, and an-corrosion of the workpieces, also, can repair the broken workpieces.

5. Main technical parameter of metal wire arc spray machine

       If you are interested in our wire arc spray machine,please contact me,thanks
