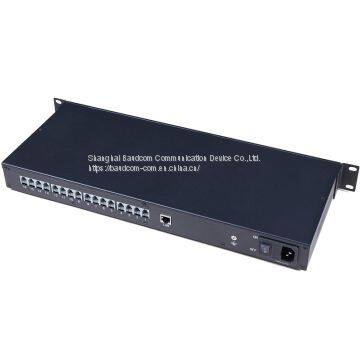

16 ports fxs/fxo Analog Voice VOIP Gateway / IPPBX
- Shanghai
- T/T L/C Credit Card PayPal Other Cash
You May Like
Product Details
| Brand Name | Buadcom | Place of Origin | China | |
| Model Number | BD-VOIP-16FXO | Type | VoIP Gateway |
Product Description
Overview:
Analog Gateway/IPPBX locates at the interface between PSTN and IP to achieve the conversion between FXO/FXS and VoIP SIP，meanwhile complete the media stream transformation between the bearer channel of PSTN and IP.
Application:
Used for IPCC, IP Dispatch, Unify Communication, VoIP network, operators, and so on.
Specification:
· Signaling: SS7, PRI, R2, CAS, Q.SIG, V5.2, and DPNSS;
· VoIP Protocol: SIP and H.248;
· Codec: G.711 U-Law and A-Law, G.711 Appendix 1, G.723.1 and G.723.1 Annex A, G.729 Annex A and Annex B, G.726-16，G.726-32，GSM，GSM-EFR，ARM，ARM-WB, ILBC;
· Fax Protocol: T30, T38, pass through;
· Network Protocol: IP, NAT, ICMP, ARP, HTTP, BOOTP, FTP, TFTP, DHCP, PPPOE, SNMP, Diff-Serv;
· Advanced Voice Processing Technology: Voice Activity Detection (VAD), Comfort Noise Generation (CNG), Echo Cancellation, DTMF, Caller ID, and Flexible input/output Gain Control.
Physical Capacity and Specification:
Item | BD-VOIP-16FXS/FXO |
Analog fxs/fxo Port | 16FXO\FXS |
E1 port (PCM) | 0 |
VOIP IP Channels | 16 |
SIP Subscribers | 100 |
Ethernet Interface | 2 (10/100/1000M Base-T |
CONSOLE | 1 (RS232 port） |
SIP Compatibility | CISCO, Siemens, AVAYA, Huawei, ZTE, etc. |
Input voltage | DC -48V or AC 110-240V |
Power | 25W |
Telephone line transmission distance | 5KM |
Machine Dimension | 472mm*260mm*44mm (1U) |
Weight | 3.5KG |
Weight Work Environment | 0℃～50℃, Less 80% |
Application Topology:
1. Basic application
2. Connection for two different places/offices via FXS VoIP Gateway
3. Function and Features of IPPBX
4. Solutions for IP call center
5.Example Application
| BD-VOIP-16FXO | 16FXO VOIP Gateway,One power supply (AC orDC), 16*FXO ports to SIP,1*1000Base-Tx,1*Console port,1U,19inch rack mount |
| BD-VOIP-16FXS | 16FXS VOIP Gateway,One power supply (AC orDC), 16*FXS ports to SIP,1*1000Base-Tx,1*Console port,1U,19inch rack mount |
