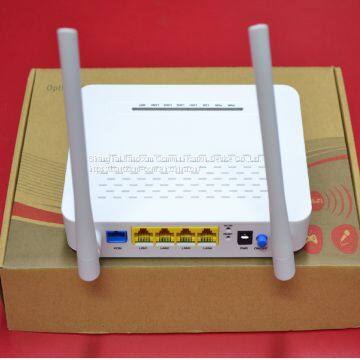

FTTH Modem 4GE + WIFI EPON ONU
- any port in China
- T/T L/C D/P D/A Credit Card PayPal Other
- 7 days
You May Like
Product Details
| Brand Name | Baudcom | Place of Origin | China | |
| Model Number | BD-ONU-114HW |
Product Description
BD-ONU-114HW EPON ONU is mainly designed for FTTH,FTTO application. BD-ONU-114HW support 1000Base-PX20+ standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink EPON port.
BD-ONU-114HW EPON ONU work together with OLT could realize flexible network structure and maintenance and provide total FTTx solutions.
BD-ONU-114HW EPON ONU has 1 EPON port, 4*10/100/1000 BASE-T ports and support Wi-Fi.
| BD-ONU-114HW | EPON ONU, 1 EPON interface, 4*10/100/1000M Ethernet ports, support WiFi (2 antennas), plastic casing, external power supply adapter AC220V or DC48V. |
*In compliant with IEEE802.3ah Standard
*Up to 20KM transmission Distance
*Support data encryption, group broadcasting, port Vlan separation ,etc.
*Support Dynamic Bandwidth Allocation (DBA)
*Support ONU auto-discovery/Link detection/remote upgrade of software;
*Support VLAN division and user separation to avoid broadcast storm;
*Support power-off alarm function ,easy for link problem detection
*Support broadcasting storm resistance function
*Support port isolation between different ports
*Support ACL and SNMP to configure data packet filter flexibly
*Specialized design for system breakdown prevention to maintain stable system
*Support software online upgrading
*EMS network management based on SNMP ,convenient for maintenance
Item | Parameter |
PON Interface | 1 EPON optical interface |
User Ethernet | 4*10/1000M auto-negotiation |
Power Interface | 12V DC Power supply |
PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm |
Data Transmission | PON Throughput: Downstream 950Mbps; Upstream 930Mbps |
Business | Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast |
Network | Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
Management | Status monitor, Configuration management, Alarm management, |
Shell | Plastic casing |
Power | External 12V 0.5A AC/DC power supply adapter Power consumption: <4W |
Physical | Item Dimension:160mm(L) x 120mm(W) x 32.5mm (H) Item weight:0.2kg |
Environmental | Operating temperature: 0 to 50oC |
WIFI Specification
Item | Parameter | |
Performance parameters | Operating Mode | Router or bridge |
Throughput | IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 135Mbps | |
Frequency | 2.412 ~ 2.472 GHz | |
Channel | 13*Channel, configurable to meet the standard of USA, Canada, Japan and China | |
Modulation | DSSS , CCK and OFDM | |
Coding | BPSK, QPSK, 16QAM and 64QAM | |
RF receive sensitivity | 802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps | |
RF output lever | 802.11b: 16.5 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps 802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps | |
Encryption Mode | 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) | |
Typical Solution:FTTH,FTTO,PON+EOC
Typical Business:INTERNET, IPTV, VOD, IP Camera, WIFI
