Home > Products > Unmanaged Ethernet Switch > Unmanaged 5 Ports 10/100M Ethernet Switch
Unmanaged 5 Ports 10/100M Ethernet Switch
- 3000 Piece / Pieces per Month
- Shanghai
- T/T L/C Credit Card PayPal Other Cash
- 7 days
You May Like
-
Unmanaged 8 ports 10/100/1000Base-TX to 1000Base-FX Gigabit Ethernet Switch
-
Optical Line Terminal 2 PON Ports GEPON OLT
-
19 inch rack mount 4PON Port EPON OLT with 4GE+4SFP uplink
-
4 Ports Mini GEPON OLT System with 4GE+4SFP uplink
-
Fiber to Home 8 Ports GEPON OLT with 8GE+4GE SFP+4*10G SFP uplink
-
Fiber to Home 16 Ports GEPON OLT
Product Details
| Brand Name | Baudcom | Place of Origin | China | |
| Model Number | BD-FS705LE-10 |
Product Description
Products Description:

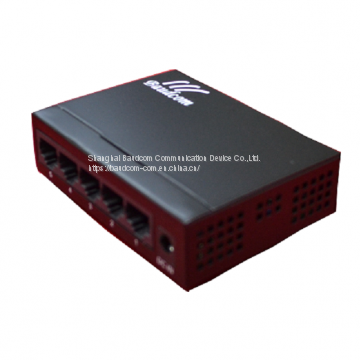

The BD-FS705LE-10 is a low-cost desktop 5 ports 10/100M network switch which is designed by Baudcom Communication Device,Co,Ltd. It provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
The BD-FS705LE-10 is a metal-shell device which is useful for the small office and home using.
Products Features:
? IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
? Provides 5 10/100Base-TX ports
? High back-plane bandwidth 1Gbps
? 1K MAC address table
? Reliable Power Adapter
? IEEE802.3x Flow control
? Surge protection for power port and data ports
? Plug and play, no configuration required
? EMI standards complies with FCC, CE class B
Products Specifications:
Item | Description | |
Summarize | ||
Fixed port | 5 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) | |
Forwarding Rate | 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port | |
Basic Function | full duplex wire-speed forwarding MAC Address Auto-Learning and Auto-updating IEEE802.3x flow control for Full-Duplex Mode and 802.3z asymmetric flow Control | |
Network Media
| 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)， EIA/TIA-568 100ù STP (maximum 100m)， 100Base-Tx: UTP category 5, 5e cable (maximum 100m)， EIA/TIA-568 100ù STP (maximum 100m) | |
LED Indicators | PWR, Link/Act | |
Power Supply | AC Power adaptor 12V 0.5A | |
Operating temperature | 0℃～40℃ | |
Storage temperature | -40℃～70℃. | |
Operating Humidity | 10%~90% non-condensing | |
Storage Humidity | 5%~90% non-condensing | |
Relative humidity | 20%～85% (non-condensing). | |
Thermal methods | Fanless. | |
Switching capacity | 1G. | |
MAC address table | 1K. | |
Traffic control | IEEE 802.3x full-duplex flow control. | |
Size | 9.2*6.9*2.5cm | |
Packing Size | 19.1*14.1*6.4cm | |
Unit weight | 350g | |
Package | BD-FS705LE-10 Network Switch User Manual Power Adapter Warranty Card | |
