2-wire 2.3Mbps Ethernet bridge SDSL modem
USD $200 - $250
/ Piece
1 Piece(Min.Order)
- 500 Piece / Pieces per Month
- Shanghai
- T/T L/C Credit Card PayPal Other Cash
- 7 days
You May Like
-
10dB 1550nm direct internal Modullatiion CATV Optical Transmitter
-
Management 32-port CATV 1550 EDFA Optical Amplifier with WDM Built-in
-
Management 32-port CATV 1550 EDFA Optical Amplifier with WDM Built-in
-
FTTH Modem 4GE + WIFI EPON ONU
-
High Speed 500mW Outdoor Wireless Access Point
-
FTTH fiber tool kit with fiber cleaver optic power meter
Product Details
| Brand Name | Baudcom | Place of Origin | China | |
| Model Number | BD-SDSL |
Product Description

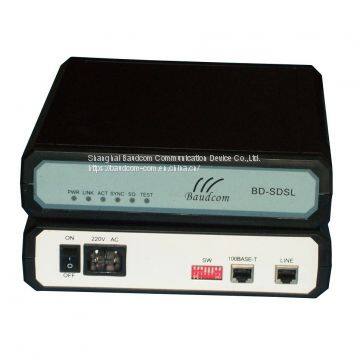

BD-SDSL is ASIC-based 2-wire 2.3Mbps Ethernet bridge SDSL modem. It uses SDSL(multi-rates digital end-user line) technology so that the data rate between two joint LANs can reach 2320 Kbps, the distance can be reached 3.29km in 24AWG(0.5mm) communication line and 2.51km in 26AWG(0.4mm) communication line. The modem can connect two LANs through a pair of twisted-pair to extend distance of LANs.
PRODUCT CHARACTERISTIC
Based on self-copyright IC.
Ethernet port 10/100M half/full duplex self adaptable, supporting VLAN.
RJ45 interface supports AUTO-MDIX.
the distance can be reached 3.29km in 24AWG(0.5mm) communication line and 2.51km in 26AWG(0.4mm) communication line.
Provide LAN auto reset function, run more stably.
Has the function of pseudo-random code testing, convenient for opening of the circuit, and can be used as an error code instrument.
can store a maximum of 1024 MAC subnet address
With abundant presentation function of Ethernet data, can detect real-time data communication status.
WAN Interface
Data rate: | 256kbps; 384kbps; 1024kbps |
1280kbps; 1536kbps | |
2048kbps; 2320kbps | |
Transmission mode: | Synchronous full duplex; HDLC |
Line interface: | impedance 135ohm, physical |
interface RJ45, with pin 4 and pin | |
5 (middle 2 lines) |
LAN Interface
Rate: 10/100M, full/duplex auto-negotiation
Protocol: Support IEEE 802.3,IEEE 802.1Q (VLAN)
MAC Address Entiries: 1024 Entiries
Physical interface: RJ45, support AUTO-MDIX
Power supply
working voltage range wide, good
anti-disturb and Isolation, work stable
option I – DC-48V,range DC-36V~DC-72C
option II – AC220V,range AC165V~AC240V
Power Consumption: <=3 Watts
environment condition
Operating temperature: 0C~+50 C
Storage temperature: -20 C~+70 C
Relative temperature:95% (uncondensed)
