High Speed 500mW Outdoor Wireless Access Point
- 5000 Piece / Pieces per Month
- any port in China
- T/T L/C D/P D/A Credit Card PayPal Other
- 7 days
You May Like
Product Details
| Brand Name | Baudcom | Place of Origin | China | |
| Model Number | BD-OS2C2D-833 |
Product Description

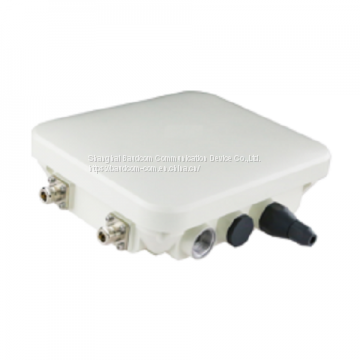

BD-OS2C2D-833 outdoor Access Point is a high power Outdoor dual band ceiling type AP, provide 2.4G and 5G terminal access with the maximum 1.2Gbps rate. It supports POE 48V power , The power of the AP is up to 500mW, with high gain directional antenna, it can cover a large scope with high bandwidth and stability.
The device design with cast Aluminum enclosures, fully compliant with IP67 and waterproof standard, It can work at -40 to 65 degrees wide temperature environment.
| BD-OS2C2D-833 | Outdoor Wireless Access Point, Wireless speed 1.2Gbps,1000Mbps eth, POE power, 2.4GHz and 5GHZ, 27dBm |
*built-in 2*2MIMO ;
*Support Gigabit SFP
*High RF power output, up to 500mW;
*Support Telnet and WEB management;
*Support 802.11a/b/g/n/ac technical standard;
*High-sensitivity, meets technical standard of operators;
*supports 48V POE reverse power ;
*Waterproof, anti-dust, anti-ultraviolet, wide temperature and IP67 protection standards design to meet the various outdoor environment;
*Support 4G LTE and built-in storage (SSD and SD card compatible design)
Application:
*ISP wireless access service;
*park and school Wireless network;
Item | parameter | specification |
RF | Operating frequency | 2.4GHz/5GHz |
Wireless standard | IEEE802.11ac/a/b/g/n MIMO 2x2 | |
TX power | 6-54Mbps:27dBm MCS0:27dBm MCS7:27dBm MCS9 :24dBm | |
Receiver Sensitivity | 21Mbps :-97dBm 11Mbps :-91dBm 6Mbps: -95dBm 54Mbps:-78dBm MCS0-HT20:-90dBm MCS7-HT20:-73dBm MCS0-HT40:-87dBm MCS7-HT40:-71dBm | |
Software features | Network function | Support AP, STA mode Support user isolation Support signal scanning Support bandwidth limit Support Portal authentication Support blacklist and white list Support prevent ARP Spoof attack Support for illegal AP detection Support AC management Support power adjustment Support VLAN |
Management function | Support WEB configuration management Support SNMPv2 Support Telnet CLI Support remote and batch software upgrade Support FTP, TFTP Support Remote Syslog Support console port configuration and debugging | |
certificate and security functions | WPA/WPA2(WPA-PSK,WPA-EAP) WEP 64/128 bit encryption MAC encryption Standard RADIUS server interface, channel support AES encryption | |
Environment Parameters | Power supply | 48V POE power supply |
Dimensions | 239mm(H)195mm(W) 83mm(D) | |
Weight | 2Kg | |
WAN Interface | 1 SFP slot for GE SFP transceivers 1*10/100/1000Base-Tx (combo with SFP port) | |
Other port | SIM card, RS232 and SD card | |
Antenna type | Optional built-indirectional antennas or outdoor external antennas (4 N Type RF connectors) | |
power consumption | 25W(typical)30W(Maximum) | |
Waterproof grade | IP67 | |
System memory | 256M | |
FLASH | 16M | |
Operating temperature | -40~55∩ | |
Humidity | 5-95% (non-condensing) | |
Storage temperature | -40~85∩ |
