Home > Products > DTH drill > Pneumatic Roof Bolter|Portable Pneumatic Jumbolter Roof for Coal Mine Cable Installation Pneumatic Roof Bolter

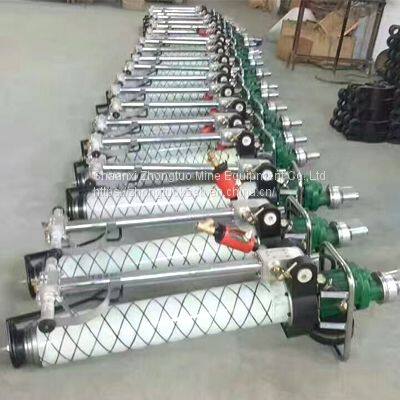

Pneumatic Roof Bolter|Portable Pneumatic Jumbolter Roof for Coal Mine Cable Installation Pneumatic Roof Bolter
- shanghai
 - T/T L/C
 - 30 days

You May Like
-


Electric DTH Drill|15 Meter Depth Electric Driven DTH Drill Rock Drill Machine
 -


Air Leg Rock Drill|Jackills Pneumatic Rock Drills Portable Drill Bit for Coal Mine Tunnels Air Leg Rock Drill
 -


Character of Reinforced Bar Forming Machine|Production Equipment for Tunnel Steel Arch Eight NC Hydraulic Flower
 -


Upset Forging Machine|Hydraulic Automatic Forging Machine Steel Stitching for the Bridge Upset Forging Machine
 -


Spiral Bar Forming Machine|CNC Hydraulic Screw Steel Processing Machinery for Bridges Spiral Bending Machine
 -


Rebar Cold Extrusion Press Machine|For the Bridge on the Connecting Sleeve by Extrusion Extrusion Pliers

Product Details
| Brand Name | ZHONGTUO | Place of Origin | China | |
| Type | Core Drilling Rig | Certification | SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Power Type | Diesel | Usage | Coal | |
| Condition | New |
Product Description
pneumatic roof bolter|Portable Pneumatic Jumbolter Roof for Coal Mine Cable Installation pneumatic roof bolter
Product features of portable pneumatic roofbolter:
It is small in volume, light in weight, simple in operation and convenient in maintenance. The gear type pneumatic motor is stable in operation and high in reliability. The design of a new type of GFRP gas leg has high reliability and longer service life.
Main parameter of pneumatic roof bolter:
item  | main parameter  | |||
Model  | MQT-130/3.2A  | MQT-130/3.2B  | MQT-130/3.2C  | |
Rated pressure  | Mpa  | 0.4  | 0.5  | 0.63  |
Rated torque  | N.m  | 110  | 130  | 140  |
Rated speed  | r/min  | 220  | 240  | 260  |
Idling speed  | r/min  | 650  | 700  | 750  |
Air consumption  | M3/ min  | 4.2  | 4.3  | 4.4  |
Dynamic starting torque  | N.m  | 170  | 210  | 260  |
Dynamic stall torque  | N.m  | 180  | 230  | 270  |
Flushing water pressure  | Mpa  | 0.6~1.2  | ||
Noise  | dB(A)  | ≤95  | ||
Minimum height of the whole machine  | ㎜  | 1150  | 1300  | 1450  |
Maximum height of the whole machine  | ㎜  | 2470  | 3070  | 3670  |
Machine weight  | kg  | 54.0  | 56.0  | 58.0  |

Application scope of Coal Mine Drill Rig Rock Bolt Drill:
The MQT-120/2.7 type Pneumatic Rotary Roof Bolter is widely applicable to the rock hardness is less than F10, especially suitable for coal roadway bolting work, can drill and drill hole roof bolt, anchor hole, can also stir and install resin cartridge type bolt and anchor, without other equipment, you can achieve a bolt nut installation tighten up initial anchor pretightening force requirements.Pneumatic 3 Stage Roof Bolter
