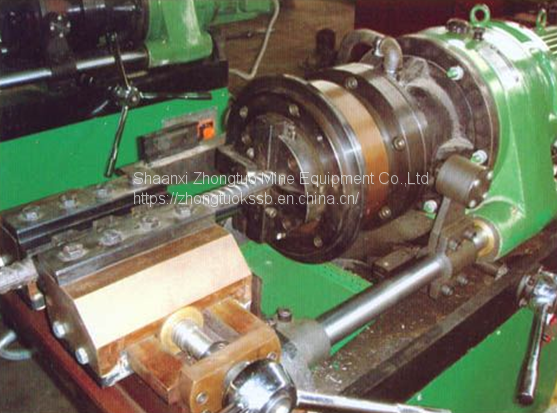

Straight Thread Rolling Machine|Efficient Straight Thread Processing Sleeve Connection Equipment for Construction

Product introduction of rebar threading machine:

Straight thread rolling machine cold is a multifunctional, rolling function, thread on the workpiece in the rolling pressure range cold rolling straight lines and twill processing; rolling straight teeth, helical and helical spline gear; straightening, necking, rolling and rolling forming all kinds of light. Rebar Thread Cutting Machine has a safe and reliable electric - liquid execution and control system, which can make every work cycle in three modes of manual, semi-automatic and automatic.

Product features of steel bar straight thread rolling machine:

1, one time to install the steel bar can complete the ribbed, roll the thread, the processing speed is fast.

2. The automation is high and the operation is simple.

3. After the ribbed ribs are rolled, the shape of the rib is good, the precision is high, and the diameter is consistent.

4, the rolling wheel has long life, and the additional cost of the joint is low.

5, the rolling head is small in specification, and the range of processing bar is large. One equipment can finish the machining of the 16-40mm bar thread of the equipment diameter.

6, the adjustment is convenient, rolling different specifications of steel, only the same pitch, do not need to break the head of rolling wire can be adjusted.

Technical parameters of Rebar Thread Rolling Machine:

Equipment model: SG-40NG

Processing scope: 16-40mm

Roller parameters: 60X3,60X2.5; 75X3,75X2.5.

Work travel: 800mm (effective length of rolling thread)

Reducer: bw3-43

Mechanical weight: 480KG

Motor power: 3KWX1440

Type of machine tool: 1200X650X1000mm
