Wholesale Straight thread rolling machine

Description of Straight thread rolling machine:

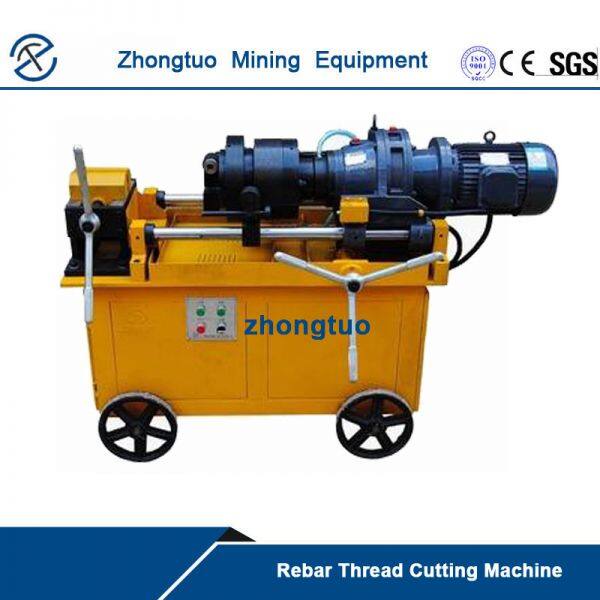

Thread rolling machine DBG-40B  is simple and easy used machine, it works very fast, for rebar D32, each machine can roll as many as 1000 pcs of rebar each day.

It can processing rebar diameter 16~40mm, max thread length is 80mm, with thread pitch 2.0-3.5mm, thread angle 75/60 degree.

Structure :The frame, clamp pliers, guide, slide, cycloidal reducer, stripping rib rolling head, feeding mechanism, automatic movable institutions, stroke limit mechanism, cooling system, electric control box, and control system components.

Product features of steel bar straight thread rolling machine:

1, one time to install the steel bar can complete the ribbed, roll the thread, the processing speed is fast.

2. The automation is high and the operation is simple.

3. After the ribbed ribs are rolled, the shape of the rib is good, the precision is high, and the diameter is consistent.

4, the rolling wheel has long life, and the additional cost of the joint is low.

5, the rolling head is small in specification, and the range of processing bar is large. One equipment can finish the machining of the 16-40mm bar thread of the equipment diameter.

6, the adjustment is convenient, rolling different specifications of steel, only the same pitch, do not need to break the head of rolling wire can be adjusted.

Application of rebar threading machine:

The operation principle of rebar thread rolling machine, first use cutter to cut the rib ,then use rolling wheel to roll into parallel thread screw

It can process the ribbed rebar of Φ 16-Φ 40mm. operation is simple ,and Easy construction

The Processing tooth form is  full ,and dimension precision is high.

Can processing right-hand thread, can also be processed back button thread
