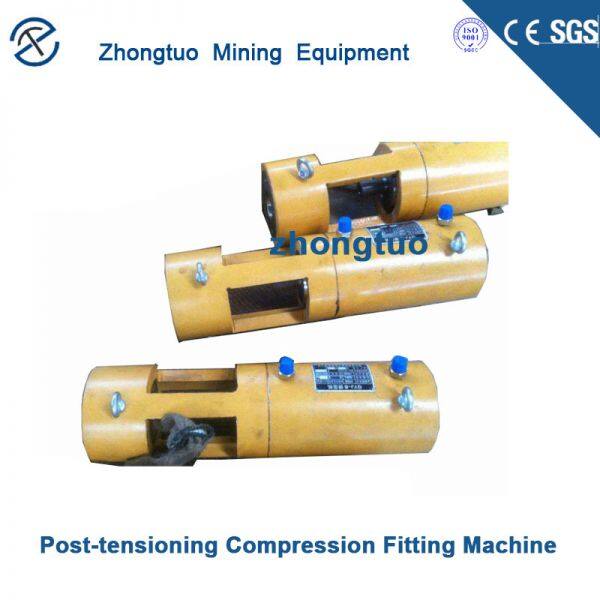

Wholesale Post-tensioning Compression Fitting Machine

Description of Anchor Extruder for Post Tensioning:

The post tension anchor (M15, M13 BM15, BM13 flat anchor, anchor, anchor ring HM), fixed end anchorage (H, P), the connector and the corrugated tube.Prestressed anchors can be use for a wide range , the design of the wedge and the anchor hole must to match, make in the tension together to work, force evenly.

Pre-stressing tendon can be selected from 1 to 55 tendons per design requirements. The tensile force can be controlled within 0 - 11000 KN.

Our company can design and produce anchorages of any specifications in accordance with demands of customers.

Wide applications it is adaptable for strands with diameters from Φ9.5mm to Φ21.6mm ,with standard strength of 2000Mpa or lower.With Compacted structure ,easy operation , safety and laborsaving , high anchoring efficiency and reliable anchorage.

which is widely used for different projects ,such as road and railway bridge, large scale industrial factory, high rise building,Hydroelectric dam , geotechnical engineering, etc.

GYJ series of Compression Fitting Machine is divided into GYJB type and GYJ type solid core two.

Processing steps and precautions of P type anchorage tendons

When the prestressing steel strand is installed with the extrusion sleeve, the steel strand is first fixed according to the predetermined length. After the reverse treatment is applied, the extrusion spring and the extrusion sleeve are inserted into the extruder, and then extruded on the extruder.

The process of extrusion processing;

1 connect the extruder to the oil pump and connect the power supply.

2 apply the wetting grease to the extrusion die.

3 the extrusion spring is put into the steel strand and through the extrusion die of the extruder together.

4 extruding sleeve on the extrusion spring coat of the steel stranded wire.

The oil pump supply oil to the Post-tensioning Compression Fitting Machine and squeezes the extruding sleeve through the extrusion die. It is the extruding sleeve which is fined and nested on the steel strand.

Matters needing attention

By extrusion through extrusion mode, the highest oil pressure should be between 25-38Mpa.

After extruding, it is required that the bottom and the steel strand be nested tightly, and the extrusion spring should be embedded in the extruding sleeve and the steel strand.

The length and outer diameter of the extruded sleeve should be in accordance with the manufacturer's given value, and the outside should be smooth and no crack.
