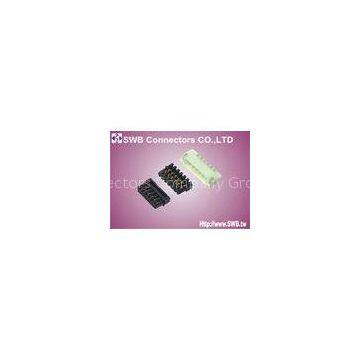

Wafer IDC Male Connector Wire to Board , 0.6mm Crimp Style Connector 4 pin - 12 pin
- T/T L/C D/P D/A
- 7 days
You May Like
-
2 Pin - 20 Pin Wire To Board Single Row Idc Connector Wafer 0.8mm Pitch
-
IDC Socket Connector Wafer , Female 1.0mm Pitch Pcb Connectors Wire To Board
-
Right Angle Picoflex Header IDC Socket Connector Wire to Board 1.27mm Pitch
-
Female Wire to Board 2mm IDC Socket Connector With Strain Relief , Straight Orientation
-
Tin Plated Idc 10 Pin Connector / 50 Pin Idc Connector 2mm itch
-
Double Row Male IDC PCB Board In Picoflex 1.27 Mm Pitch Idc Connector 24 Pin / 12 Pin
Product Details
| Brand Name | SWB | Place of Origin | China | |
| Model Number | 0600 Series |
Product Description
Certification:ISO9001/SGS/UL/RoHS/Reach
Wafer IDC Connectors , Male Wire to Board Connectors 0.6mm Pitch Crimp Style
?Specifications:
|
Product Name |
Wafer IDC |
|
Product Series |
IDC Connectors |
|
SWB Part Number |
0600HI-XX |
|
Gender |
Female |
|
Pitch |
0.6mm |
|
No. of Rows |
1 |
|
No. of Contacts |
4~12 |
|
Orientation |
Straight |
|
Contact Material |
Phosphor Bronze |
|
Contact Plating |
Gold Flash |
|
Plastic Material |
LCP UL 94V-0 |
|
Plastic Color |
Black |
|
Current Rating |
0.2A AC/DC |
|
Voltage Rating |
30V AC/DC |
|
OperatingTemp. Range |
-25℃~+85℃ |
|
Contact Resistance |
30mΩ Max |
|
Insulation Resistance |
100MΩ Min |
|
Withstanding Voltage |
200V AC/minute |
|
Wire Range |
AWG#34~36 |
