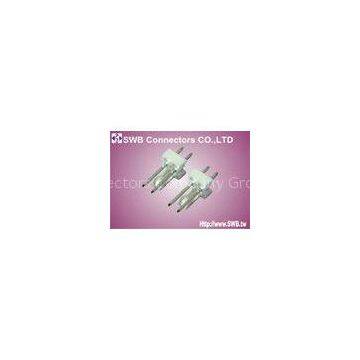

Female Wire To Board Connectors 2.54 mm Pitch With Buckle Wafer

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SWB		Place of Origin	China
Model Number	2510 Series

Product Description

Delivery Time:7~10 Work Days
Certification:ISO9001/SGS/UL/RoHS/Reach

Female Wire To Board Connectors 2.54 mm Pitch With Buckle Wafer?
?
?
?Specifications:
?

Product Name	Wire to Board?Connectors
Product Series	2.54?mm Pitch Connectors
SWB Part Number	2510
Gender	Female
Pitch	2.54?mm
No. of Rows	double row
No. of Contacts	02-20?pin
Orientation	vertical
Contact Material	Tin Plated?
Contact Plating	Tin Plated
Plastic Material	PA66 94V-0?
Plastic Color	Natural
Current Rating	3A AC/DC
Voltage Rating	2500V AC/DC
OperatingTemp. Range	-25℃~+85℃
Contact Resistance	20mΩ Max
Insulation Resistance	1000MΩ Min
Withstanding Voltage	800V AC/minute
Wire Range

?
?
?Competitive Advantages:

Brand-name PartsCountry of OriginExperienced StaffGreen ProductGuarantee/WarrantyPerfect PackingCompetitive PriceHigh QualityPrompt DeliveryCetification: ISO9001/SGS/UL/RoHS/ReachReputationBest Re-Sale and After-Sale ServiceSmall Orders AcceptedFree Samples

Packaging & Shipping

?
1 Packaging : Useing strong bags/boxes/cartons for package to reduce the damage during the shipments. Tape and reel packing, Clamshell packing,Pallet packing etc are available .
2 Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc .
3 Delivery Time: normally 7-14days, could be negotiable when order is urgent .
?

Our Services

1 fully-Inspection - Products are 100% inspected before shipment
2 In case of quality discrepancy or quantity discrepancy, we will do replenishment immediately, or other better methods after negotiation, to make sure our customers could be satisfied well .
3 Solution - Find the problems, make an effective improvement, and impose more strict quality control .
4 Long term after sell service to ensure customer is satisfied .
?

FAQ

?
Q:How to place a fast connector order ?
?
A:The following tips will save your time .
?

The name of the productPictures and/or the data sheet for the productThe number of rowsThe number of pins per rowThe pitch of the connectorThe height of the insulatorThe color of the insulatorThe type of materialAny Additional Demands

Ask your engineer for details
Are you a purchaser that doesn’t work directly with the product? To place a fast connector order, you can consult the project engineer to gather these information before contacting us.
