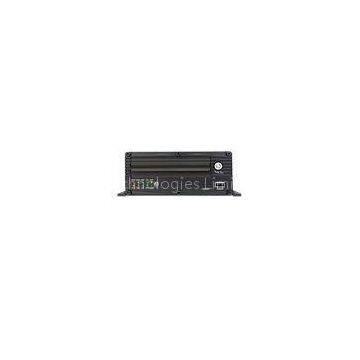

Realtime Monitoring GPS G-sensor school bus vehicle Security Camera System mobile DVR 4Ch 3G

Item

Description

Operating System

Linux (2.6)

Video Compression

H.264 main profile. ARM9, 10bit chipset processor.

GUI

Graphical User Interface

Setup system parameters through the remote control.

Video and Recording

System

Video input

1-4 channels input, 4 CVBS, 1.0Vp-p, 75Ω

Video output

1CH output, CVBS, 1.0Vp-p, 75Ω,

Preview

Support 1 channel or synchronous 4 channels preview.

Recording Resolution

Support CIF,HD1,D1 resolution optional, maximum 2CH of D1 ,2CH of CIF

Video Quality

1-4 levels, 1 is the highest level , 4 is the lowest level.

Recording Mode

support timed recording, alarm recording, manual recording.

Audio

Audio Input

Mic or line in, up to 2 channels

Audio Output

1 channel output, output voltage, 1V ~2V

Compression

G.726, 5KB/s

Alarm

Input

Support up to 4 channels alarm input.

Alarm recording,

include the recording within 15 seconds ahead of the alarm starting

Output

2Ch alarm output, level signal.

Communication Port

RS232 for remote control, RJ45 10M/100M Ethernet port.

GPS and G-Sensor, Gyro-sensor

built-in GPS module optional. With G-Sensor to induce the vehicle X, Y, Z axis

3G,WIFI Wireless transmission

Built-in wireless module optional. Such as 3G EVDO, HSPA, HSDPA, WCDMA…GPRS, EDGE

Playback

System

Video Search

Search video via time, type(normal or alarm),

Playback

Support 1 or synchronous 4 channels playback.

Support forward at the speed of, x 2,x4,x8,x16.

Storage

SD Card

Support 2 SD Cards, 128GB for each at max(default 1 card supported).

Power

Power Management

1,Vehicle acc on/off 2.Preset time

Power Supply

DC,+8V ~ +36V

Power Output

+12V 1.5A,+5V 1.5A

Power consum

Normal working state <5W, Idle state<0.5W

Pow
