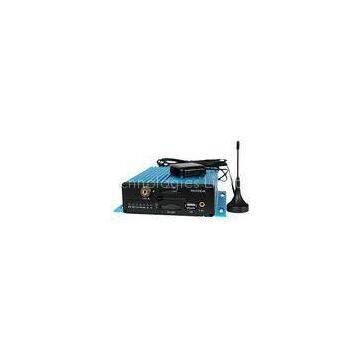

Mobile Phone control 4 channel GPS 3G Mobile DVR , Automobile bus Trail Car DVR Video Recorder

Description:

1. Embedded Linux operating system using H. 264 format, compression ratio, the
image is clear ;
2. 4 channel video input (air connector or RCA connector), 1 channel RCA ;
3. 4 channel audio input (air connector or RCA connector), 1 channel audio output ;
4. Built-in GPS, Built-in wireless module like 3G (EVDO, WCDMA,HSPA, HSDPA,?TD-SCDMA…), GPRS…optional.
5. Recording Resolution: 720x576 (D1) NTSC: 720x480 (D1);
6. Playback Resolution: CIF/ 2CIF/ D1 optional, maximum support 1CH of D1 & 3CH?of CIF .
7. Support single SD card as the storage medium (support 32G) , read data easy and?fast;
8. Support Simplified Chinese, Traditional Chinese, English interface;
9. USB mouse menu operation, outside remote control function (optional) ;
10. support manual, timer, alarm, motion detection triggered recording ;
11. Video search can be checked from time search, event search and channel search;
12. each channel can be independently to set brightness, contrast, color
13. Free to change the Frames of every channel.
14. 4 channel playback, optional in any channel full screen
15. Support backup the date fast via U disk
16. OSD overlay information, independent of the number
17. Support setting plate number, drive route, channel name can be modified freely;
18. Wide voltage design, DC7- 36V power input, the output voltage 12V/2A
19. support delay shutdown feature, delay time can be set between 0-6 hours
20. aluminum alloy design, installation easy.
21. Size: 147mm X 133mm X 41.5mm

Competitive Advantage:

◆ MINI size Design

◆ 4 Channel video input

◆ Playback Resolution: CIF/ 2CIF/ D1 optional, maximum support 1CH of D1 & 3CH of CIF .

◆ Support SD card as the storage medium (max64GB)

◆ Support manual, timer, alarm, motion detection triggered recording ;

◆ GPS tracking optional;

Applications:

Private Car surveillance System

The Private Car system comes with 4 cameras , front ,back ,left and right . 360-degress full views record in real time Also you can install the camera inside the car, record both the outside view and inside people during the Car.
