Home > Products > SD Card Mobile DVR > H.264 4ch mini 3G GPS 64GB / 128GB SD Card Mobile DVR Andriod / IOS App Live View Monitoring

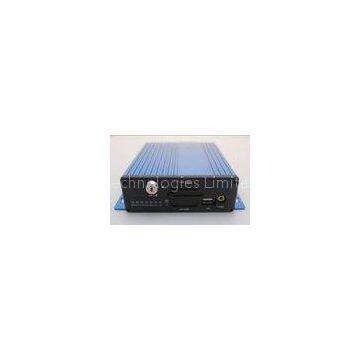

H.264 4ch mini 3G GPS 64GB / 128GB SD Card Mobile DVR Andriod / IOS App Live View Monitoring
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Definition Law Enforcement Body Worn Camera , 3G 4G GPS WIFI police wearing body cameras
-
Waterproof 600 tvl vehicle mounted cameras , infrared Mini Dome Security Car Camera
-
Side view vehicle mounted cameras 420 tvl with waterproof metal case
-
Rear view IR day / night metal box vehicle mounted cameras in 600 tvl
-
IR Mini Dome Security 420 tvl vehicle mounted cameras Weatherproof
-
Night vision Universal Vehicle Rear View Camera 420TVL with CMOS Sensor
Product Details
| Brand Name | RECODA or your brand | Place of Origin | China | |
| Model Number | M602WG |
Product Description
Certification:CE,FCC
Andriod / IOS App Live View Monitoring h.264 4ch mini 3G GPS SD Card Mobile DVR
Feature:
4 channels car DVR , support max 128 GB sd card? IOS / android ?live view 3g mobile monitoring.? with 3G ,GPS tracking mobile dvr?Description:
4 channel car DVR , support max 128GB sd card?mobile dvr? 3G live view ,GPS tracking optional mobile dvr ? IOS / ANDROID live view Mobile App available Embedded Linux operating system? car DVR ,using H. 264 format, compression ratio, the image is clear ; 4 channel video input (air connector), 1 channel RCA ; 4 channel audio input (air connector), 1 channel audio output ; Recording Resolution: 720x576 (D1) NTSC: 720x480 (D1); Playback Resolution: CIF/ 2CIF/ D1 optional,?maximum support 1CH D1 & 3CH?CIF?. Support single SD card as the storage medium (support 32G) , read data easy and fast; Support Simplified Chinese, Traditional Chinese, English interface; USB mouse menu operation, outside remote control function (optional) support manual, timer, alarm, motion detection triggered recording Video search can be checked from time search, event search and channel search Support setting plate number, drive route, channel name can be modified freely; aluminum alloy design, installation easy.Specifications
|
Item |
Description |
|
The main processor |
Hi3512I |
|
operating system |
?Embedded Linux operating system |
|
System resource |
4 channel full real-time video at the same time |
|
Video Standard |
PAL,NTSC |
|
Image compression |
H.264 |
|
Audio compression |
ADPCM |
|
Video mode |
Manual, time, alarm, motion detection |
|
Video search |
Time search, event search, channel search |
|
backup mode |
USB backup |
|
Video/Audio ?input |
4 CH air connector |
|
Video/Audio ?output |
1 CH air connector |
|
Recording Resolution |
PAL;720x576(D1) NTSC;720x480(D1) |
|
playback Resolution |
PAL;352x288(CIF) NTSC;352x240(CIF),1channel D1 720x576 |
|
Image Control |
6-speed adjustable |
|
Motion Detection |
Can be set to 396 (22 × 18)? detection areas, can be set multi-level sensitivity |
|
Screen display |
Single-screen, four screens |
|
Recording? speed |
PAL: 25 frames / s(adjustable) NTSC: 30 frames / s(adjustable) |
|
Recording storage |
SD Card |
|
Local playback |
1 ch or 4 ch playback |
|
alarm input |
4 switches |
|
Memory interface |
1 SD card interface |
|
USB interface |
1 USB 1.1? interface |
|
GPS |
Embedded GPS module Optional |
|
Ignition signal |
ONE |
|
Power Supply |
DC 5V- 36V power input |
|
Power output |
the output voltage 12V/2A |
Andriod / IOS App Live View Monitoring h.264 4ch mini 3G GPS SD Card Mobile DVR
