Home > Products > Vehicle Mounted Cameras > Universal car vehicle mounted cameras 480tvl , automobile vandal proof dome camera

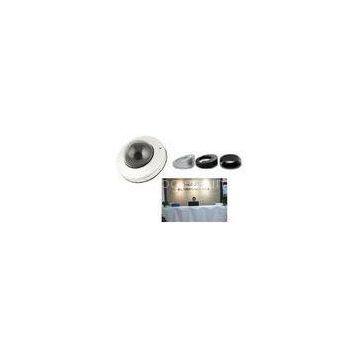

Universal car vehicle mounted cameras 480tvl , automobile vandal proof dome camera
- T/T L/C D/P D/A
- 7 days
You May Like
-
IP67 weatherproof 600tvl High Resolution Vehicle Mounted Cameras base Bracket
-
Trail / Tractor Metal-cased IP67 weatherproof micro dome Camera with fixed lens
-
Base Bracket Vehicle Mounted Cameras 600TVL 0 20 25 degree optional
-
H.264 4ch mini 3G GPS 64GB / 128GB SD Card Mobile DVR Andriod / IOS App Live View Monitoring
-
High Definition Law Enforcement Body Worn Camera , 3G 4G GPS WIFI police wearing body cameras
-
Waterproof 600 tvl vehicle mounted cameras , infrared Mini Dome Security Car Camera
Product Details
| Brand Name | RECODA | Place of Origin | China | |
| Model Number | C806 in 480tvl |
Product Description
Certification:CE/ROHS/FCC/UL
Product Features
? Mini Metal Dome Camera
? IP67 Water-proof & Vandal-proof
? 1/3”Sony Color CCD
? Resolution: 600tvl
? Lens Optional: 2.2mm
Detailed Product Description
|
Model |
C806 |
C806-S |
|
Pick up Device |
1/3” Color SONY CCD |
1/3\" CMOS 1089 |
|
TV System |
PAL/NTSC |
PAL/NTSC |
|
Picture Elements |
PAL: 752Hx582V |
PAL: 728Hx488V |
|
Horizontal Resolution |
600TVL |
600TVL |
|
Sensitivity |
1.3 Lux at F1.2 |
|
|
Scanning System |
625TVL |
|
|
2:1 Interlace |
||
|
Synchronization |
Internal |
|
|
Infrared Spectrum |
850nm |
|
|
S/N Ratio |
More than 50 dB, (AGC Off) |
|
|
Auto Gain Control (AGC) |
Auto |
|
|
White Balance |
Auto |
|
|
Electronic Shutter |
Auto |
|
|
Back Light Compensation |
Auto |
|
|
Infrared LED |
N/A |
|
|
Infrared LED Range |
N/A |
|
|
Video Output |
1 Vp-p, 75Ωcomposite, BNC x1 |
|
|
Audio Output |
for options |
|
|
Mirror |
for options |
|
|
Gamma Ratio |
0.45 |
|
|
Lens |
f2.2mm wide-angle lens |
|
|
Exterior Focus Adjustment |
N/A |
|
|
Lens Mount |
M12XP0.5mm Thread |
|
|
Pan Adjusting |
?180 degree |
|
|
Tilt Adjusting |
0-50 degree |
|
|
Power Supply |
12V DC ±10% |
|
|
Power Consumption |
75mA |
55mA |
|
Dimensions (L X W X H) |
D64.7xH36.5(mm) |
|
|
Net Weight |
90g |
|
|
Weatherproof/Water Proof |
IP67 |
|
|
Operating Temperature |
-10°C to +50°C |
