Home > Products > Vehicle Security Camera System > Multi-function Vehicle Security Camera system SD Card Mobile DVR 4CH H.264
Multi-function Vehicle Security Camera system SD Card Mobile DVR 4CH H.264
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Night view car PTZ camera 480TVL , Shockproof vehicle mounted PTZ camera
-
Horizontal Resolution 480TVL Waterproof:IP 67 PTZ HD camera for bus
-
SONY 1010P 36 X ZOOM PTZ outdoor camera for boat / automotive
-
Night vision 100-120m Waterproof police Car PTZ Camera 700TVL 30X
-
HD SDI HDD 1080P 3G Car Dvr Supports Remote Monitoring on Mobile Phone / Computer / Tablet
-
High resolution SDI 1080P HD mobile DVR support GPS G-sensor WIFI 3G 4G
Product Details
Brand Name | RECODA | Place of Origin | China | |
Model Number | M602 |
Product Description
Certification:CE / FC / ROHS
4CH H.264 Multi-function SD Card Mobile DVR for Vehicle Security Camera system support 3g,gps,wifi
?
Features for M602 mobile dvr:
?
1.?Embedded Linux operating system?,H.264 format, compression ratio, the image is clear ;
?
2.?4 channel video input (air connector), 1 channel RCA ;
?
3.?4 channel audio input (air connector), 1 channel audio output ;
?
4.?Built-in?GPS,?Built-in wireless module like?3G?(EVDO, WCDMA,HSPA, HSDPA, TD-SCDMA…), GPR ?optional.
?
5. Recording Resolution: 720x576 (D1) NTSC: 720x480 (D1);
?
6.?Playback Resolution: CIF/ 2CIF/ D1 optional,?maximum support 1CH of D1 & 3CH of CIF?.
?
7. Support single SD card as the storage medium (support 128G) , read data easy and fast;
?
8.?Support Simplified Chinese, Traditional Chinese, English interface;
?
9.?USB mouse menu operation, outside remote control function (optional)
?
10. Support manual, timer, alarm, motion detection triggered recording
?
11. Video search can be checked from time search, event search and channel search
?
12.?Wide voltage design, DC7- 36V power input, the output voltage 12V/2A
?
13. Support delay shutdown feature, delay time can be set between 0-6 hours
?
14. Size: 147mm X 133mm X 41.5mm
?

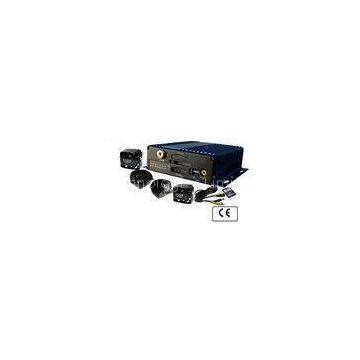

Product\'s Picture:
?
Specifications:
?
Item |
Description |
The main processor |
Hi3512 |
operating system |
?Embedded Linux operating system |
System resource |
4 channel full real-time video at the same time |
Video Standard |
PAL,NTSC |
Image compression |
H.264 |
Audio compression |
ADPCM |
Video mode |
Manual, time, alarm, motion detection |
Video search |
Time search, event search, channel search |
backup mode |
USB backup |
Video/Audio ?input |
4 CH air connector |
Video/Audio ?output |
1 CH air connector |
Recording Resolution |
PAL;720x576(D1) NTSC;720x480(D1) |
playback Resolution |
PAL;352x288(CIF) NTSC;352x240(CIF),1channel D1 720x576 |
Image Control |
6-speed adjustable |
Motion Detection |
Can be set to 396 (22 × 18)? detection areas, can be set multi-level sensitivity |
Screen display |
Single-screen, four screens |
Recording? speed |
PAL: 25 frames / s(adjustable) NTSC: 30 frames / s(adjustable) |
Recording storage |
SD Card |
Local playback |
1 ch or 4 ch playback |
alarm input |
4 switches |
Memory interface |
1 SD card interface |
USB interface |
1 USB 1.1? interface |
GPS |
Embedded GPS module |
Ignition signal |
ONE |
Power Supply |
DC 5V- 36V power input |
Power output |
the output voltage 12V/2A |
?
Solutions for private cars, including one piece mobile dvr and 4 pieces mini cameras.
?
System include:
?
Mini 4 channels Mobile DVR (M602WG)
?
The Private Car system comes with 4 cameras , front ,back ,left and right . 360-degress full views record in real time Also you can install the camera inside the car, record both the outside view and inside people during the Car.
?
Advantages:
?
Contact Us
- Shenzhen Recoda technologies Limited Company
- Contact nameMs. Candy Chat Now
- Phone86-755-82593248
- Address2F, Xi hong yuan building B2, lane2, Dezhou, Shandong
Product Categories
New Products
-
700TVL 30X Intelligent Auto tracking car PTZ camera for security surveillance
-
Realtime Monitoring GPS G-sensor school bus vehicle Security Camera System mobile DVR 4Ch 3G
-
Bus Surveillance Real Time 4CH Full D1 h.264 HDD Vehicle CCTV DVR , 3G GPS Mobile DVR
-
Taxi / Police Car 3G GPS WIFI Full HD 1080p 4 Camera Car DVR with SD Card
-
2 Inch TFT LCD High Resolution Police Body Worn Camera With H.264 Video
-
Mini Metal Dome IP67 Waterproof / Vandalproof vehicle mounted cameras in 420tvl
-
600TVL Infrared vehicle mounted cameras with 1/3 Color SONY CCD
-
3G 4G WIFI GPS Police Body Worn Camera For Law Enforcement
-
Mini Metal Dome camera , IP67 Waterproof & Vandal-proof in car cameras 700tvl
-
Universal car vehicle mounted cameras 480tvl , automobile vandal proof dome camera
-
IP67 weatherproof 600tvl High Resolution Vehicle Mounted Cameras base Bracket
-
Trail / Tractor Metal-cased IP67 weatherproof micro dome Camera with fixed lens
-
Base Bracket Vehicle Mounted Cameras 600TVL 0 20 25 degree optional
-
H.264 4ch mini 3G GPS 64GB / 128GB SD Card Mobile DVR Andriod / IOS App Live View Monitoring
-
High Definition Law Enforcement Body Worn Camera , 3G 4G GPS WIFI police wearing body cameras
-
Waterproof 600 tvl vehicle mounted cameras , infrared Mini Dome Security Car Camera
-
Side view vehicle mounted cameras 420 tvl with waterproof metal case
-
Rear view IR day / night metal box vehicle mounted cameras in 600 tvl
-
IR Mini Dome Security 420 tvl vehicle mounted cameras Weatherproof
-
Night vision Universal Vehicle Rear View Camera 420TVL with CMOS Sensor
-
CMOS Rearview Car camera 480tvl , IP68 Waterproof Front & Back view camera
-
Night vision IR 10m high definition Rearview vehicle mounted cameras 700tvl
-
Vehicle Security Car surveillance PTZ camera mouted in Bracket
-
Video Recording 4 channel SD card 3G Mobile DVR with GPS WIFI optional
