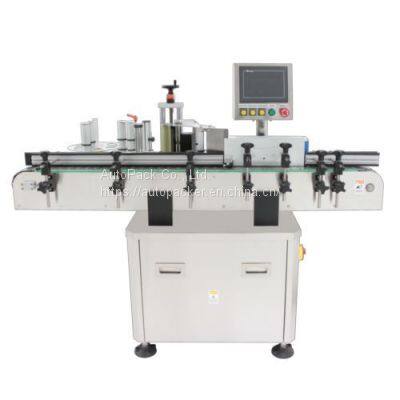

Automatic Round Bottle Labeling Machine LR-400

Automatic Round Bottle Labeling Machine

Model No.: LR-400

Automatic Round Bottle Labeling Machine LR-400 suitable for high speed wrap-around or side labeling. It is widely applied into cosmetic, pharmaceutical, food industry.

FEATURES:

• Stepper Motor for fast and accurate labeling performan

• Adjustable labeling / conveyor speed

• Wrap Station make label well attached (Square Bottle compatible)

• Perfect Through Beam Optic Fiber Product Sensing system

• Motor-driven spacer, separating bottles apart

• Height and angle are adjustable

• Controlled by Microprocessor, LED display

• MCC Slat Top-Chain conveyor

• Label Count Down featur/ Production Run Counter

• Modular design for easy maintenance/Quick and Easy Changeover

• Sanitary SUS#304 and anodized aluminum frame

OPTIONS:

• Press-and-Spin ensure full wrapping with precisely

• Hot Stamping Coding Machine(PE-200 , PM-200)/ Ink jet printer

• LION LDR2100 Clear Label Sensor

• Delta (Mitsubishi) Servo Motor：Labeling Speed at 40 Meter/Min

• Touch Screen Control System with Job Memory

• Standard Infeed & Accumulation Tray

• Motorized Infeed and Accumulation Rotary Table (600mm or bigger)

• Belt Type Infeed system：Larger Capacity

SPECIFICATIONS:

• Stepper Motor Drivens

• Labeling Speed：30~80 pcs/min(Depends on Container and Label Size)

• Bottle Size：Diameter 16~90mm

• Label Width：10~100mm

• Label Length：20~300mm

• Label Roll：Inner diameter 75mm / Outer Diameter 300mm

• Power：single phase 110/220VAC, 50/60Hz

• Machine Dimensions：(L)1767mm (W)930mm (H)1212mm
