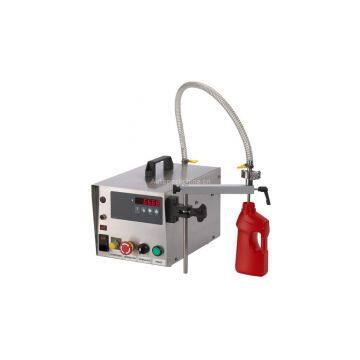

Tabletop Gear Pump Liquid Filling Machine

If you have large volume or high speed filling, Tabletop Gear Pump Liquid Filling Machine FG-100 is the best choice. It is able to achieve the output with 250ml per second by sophisticated module of gear pump and make the liquid filling to be best performance. FG-100 will satisfy your need for a relatively low volume, low cost, user friendly, high quality filling machine.

FEATURES:

• Easy to set, even if the novice can also with ease operate

• Made of SUS 316 and 316L stainless steel ,meets cGMP requirement

• LED display, easy adjusting volume, filling speed and between filling

• Ball-valve shut-off nozzle

• With emergency button

• Easy to clean, don't need to disassemble main body

• Three operating modes: manual , intermittent filling or foot switch

• Apply liquid like water, lotion, shampoo, hot sauce(under 40℃) or any other free flowing liquid

• Waterproof Germany SICK photocell sensor

• Sanitary SUS#304 and anodized aluminum frame

OPTIONS:

• 3.5L stainless steel tank

• Active pneumatic shut-off nozzle

• Diving nozzle with bracket

• Photocell activation

SPECIFICATIONS:

• Power: single phase 110/220VAC, 50/60Hz

• Filling Range: 50~4000ml

• Filling Speed: 50~250ml/sec

• Accuracy: 0.5%~1%

• Machine Dimensions: (L)480mm (W)310mm (H)270mm
  (For reference only, the real drawing should be considered as final.)
