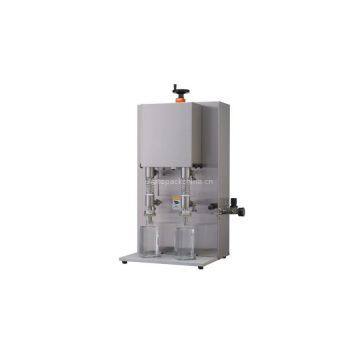

Tabletop Overflow Filling Machine

Tabletop Overflow Filling Machine FL-120 is suitable for Water like(1cps), non-granule, non-foamy liquid.

FEATURES:

• 2 copies of overflow filling module

• Active pumping system

• Pneumatic index system, bottle positioning adjustment

• Shut-off nozzle

• Overfill return

• Frame and main component are made by s/s SUS#304 and ion anodized aluminum

• Material meet GMP regulation

• Water Proof

• Alcohol applicable

• 3.5L Stainless Product Hopper (Customized Volume Hopper available)

OPTIONS:

• ( Gear Pump) (Engine-oil Pump)

• No bottle no fill

• High-end servo motor / DC brushless Motors / high efficent filling

• Diving nozzle to prevent foaming and to eliminate bubble

• Pushing-out Dripping tray, no spilling

• Each nozzle equip with individual pump

• Index system for exactly bottle positioning without bottle jam

• Pneumatic shut-off nozzle, no leaking concern

• PLC control and HMI Operation

• Memory set

• With emergency button and three-color alarm indicator

• Made of stainless steel, meets cGMP requirement

SPECIFICATIONS:

• Filling Range: 300~3000ml

• Speed: 10~60 bottles/ Min

• Filling accuracy: 1%

• Power Requirement: No Electricity required

• Air Consumption: 150L/MIN , 5-7KG/CM2

• Bottle Size: Diameter 20~50mm, Height 50~260mm

• Machine Dimensions: (L)343mm (W)862mm (H)211mm
  (For reference only, the real drawing should be considered as final.)
