Front Opening P20 Outdoor Front Service LED Display For Billboard
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Lightweight Rental P15 Transparent LED Screen Curtain For Stage
-
Outdoor IP65 P12 Transparent LED Screen , Ultra Thin LED Display
-
P10 Lightweight Outdoor Transparent LED Screen Curtain For Events
-
P12 Outdoor Transparent LED Screen , SMD 3535 Curtain LED Display
-
P7 Waterproof Outdoor Transparent LED Screen Curtain For Show
-
Outdoor P15mm Transparent LED Screen Rental For Stage , High Brightness
Product Details
| Brand Name | Newstar-LED | Place of Origin | China | |
| Model Number | NS-OR-DD-P20 |
Product Description
Certification:CE, RoHS, UL, FCC, ISO
Front Opening P20 Front Service LED Display ?for Billboard
Quick Detail:
1.Perfect?vivid?image for sign or advertising
2.Long?lifespan?and?stable?work,?waterproof,?
3.LED?Display?Cabinet?design?for?easy?install?and?dismantle.?
4.Best?quality,?best?price.
5.?High viewing angle: 110°(Horizontal )/45°(Vertical )
6.?Brightness(cd/m2)≥ 6500
Description:
1. Special Structure design for water-proof, dust-proof, moisture-proof, and anti-static electric
2. High viewing angle: 110°(Horizontal )/45°(Vertical )
3. High Contrast.?The Contrast is above 2000:1, so the viewer can have a wonderful visual
4. Outstanding consistency in color and brightness, no mosaic effects.
Applications:

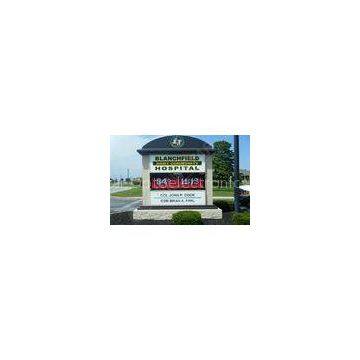

Commercial advertising:?Square,?Road side, High way, Airport, Wharf, Hotel, Restaurant etc
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model ?No. |
NS-OR-DD-P20 |
|
Pixel Pitch? |
20mm |
|
Module Size |
320mm × 160mm |
|
Module Resolution(dots) |
16*8 |
|
Panel Size |
1280mm × 960mm |
|
Panel Resolution(dots) |
64×48 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(dots/m2) |
2,500 |
|
Brightness(cd/m2) |
≥ 6,500 |
|
Best Viewing Distance(m) |
15-300 |
|
Max. Power Consumption(W/m2) |
1000 |
|
Drive? Mode |
Static |
|
Wavelength |
R? 620-625? G 520-525 B 470-475 |
|
Viewing??? Angle |
110°(H)/45°(V)? |
|
Operating?? Temperature |
–20~60°C? |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display? Refresh Rate(Hz) |
≥300HZ |
|
Grey? Level(colors) |
16.7million |
|
Lifespan |
≥100,000 hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION |
|
Control System |
LINSN OR? DB-STAR |
2. Outdoor LED Display Module? ? ? ? ? ??
|
Module Size (W*H) |
320mm * 160mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
20mm |
? ? ?Resolution (W*H) |
16 dots *?8?dots |
|
Pixel Density |
2,500 dots/㎡ |
LED Type |
3mm Oval Lamp |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
1280mm * 960mm |
Module Qty |
32 pcs |
|
? Cabinet Resolution (W*H) |
64 dots * 48?dots |
Cabinet Pixel |
3,072 |
|
Weight |
40 kg/ Cabinet |
Area |
1.228㎡ |
|
Average Power Consumption |
350w/㎡ |
Max Consumption |
1000W/㎡ |
4. Methods for Quality Assurance
a. Aging
b. Vibration Testing
5. Factory Equipment
6. Package
