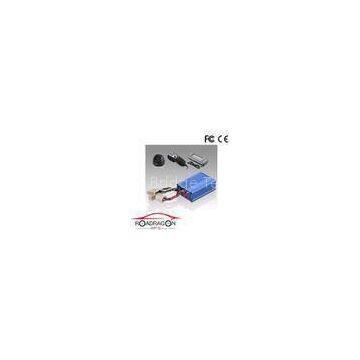

Aluminum alloy Vehicle GPS Tracking Devices With RS232 Port

Aluminum alloy Vehicle GPS Tracking Devices With RS232 Port

Main Features:

? ● Based international newest chip, double core structure, powerful

? ● GPRS and SMS double channels, TCP and UDP double working mode

? ● Positioning based GPS reflected wave, assist with base station, strong capacity to prevent blocking to reduce the blind area

??●Three proofing design, Quadruple protection for power source, 4 levels watchdog

? ● Low power consumption,

? ● Build-in high capacity backup battery.

? ● Broad intelligence interface to achieve automatic report station for bus, LED screen to release Ads

? ● Build-in TTS voice module to achieve the function of voice report.

? ● It can update remotely, easy to maintain

? ● Approved by 3C, and approved by national grade quality authentication.

?Product Functions:

? ?1.Signal detecting and control:?

13 routes signal sensor, 17 vehicle status detecting, intelligence mode and forced mode to cut fuel/circuit, user-defined backup output control.

? ?2.Alarm:?

19 alarms, 3 modes of alarm.

? ?3.Monitoring:?

vehicleautomatic tracking/monitoring, regions setting, geo-fence, GPS mileage statistics, blind area supplementary report, traces storage, base station positioning.

? ?4.Road detecting:?

road detecting, road detecting calculation, departure alarm, speeding alarm, entry/exit station report…

? ?5.Voice and phone call:

hands free phone, remote listen in, voice reminding device, TTS voice report.

? ?6.Fuel consumption detecting:?

build-in 2 routes AD input interface, equipped floater attenuation cable can measure fuel consumption, and equipped temperature can detect the temperature.

? ?7.LED screen for release Ads info:

Downlink Ads to screen via RS232 port and show Ads on the screen.

? ?8.Image:

monitor by image, store/record image, image transmission.

? ?9.Remote update:

main device’s program was support to remote download; user can renew the program remotely.

? ?10.Protection

Power saving mode: in this mode, GPS device’s working current will drop to20mA@12V when vehicle was in flameout.

Car battery over discharge protection: it will switch to supply power by backup battery if car battery’s voltage is very low (9.5V).

Over voltage protection: it will cut the external circuit to protect GPS device if the voltage exceeds limit value (36V), backup battery can work for 3h.

Performance Parameters:
