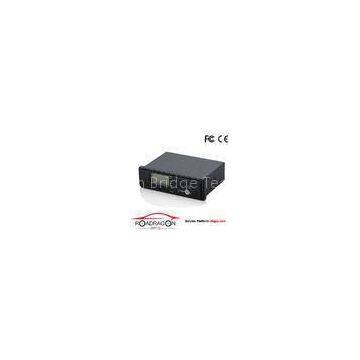

Wireless Vehicle Digital Tachograph 18 Keys With RFID Card Reader

GPS driving recorder performance index

Vehicle detecting interface

8 routes digital signal input

Vehicle mileage pulse input

1 route (mileage pulse factor self-adaption feature)

Analog input interface

2 route AD input

Output interface

5 routes OC output, controllable relay

Communication interface

4 route RS232 port, 1 route USB interface.

Voice interface

1 route hands free calls, can be listen in via build-in microphone

Voice prompt

Build-in voice prompting, TTS text report device (optional)

Driver ID recognition

Contact-type IC card reader (optional)

Special features for bus

Module YW3000-Y256A/Y356A for bus

Report station module

Audio output to report station, driver input to report station, power of report station speaker is 10W

Keyboard for report station

18 keys with RFID card reader, RS232 port

Technical specification

Working voltage

10～60 V/DC

Limiting voltage

100V/DC

Car battery protecting voltage

Low: 10V ??High: 56V

Power voltage of Anti-reversed connection

≥100V

Average working current

90mA DC 12V

Power saving mode

＜30mA DC 12V

Backup battery

Work time 1h

Dimension

191x 142x 58mm(L x W x H)

Canning material

Panel: industrial plastic, main case: electrolyze steel plate

Installation mode

Embedded installation on vehicle panel or use external bracket to install it.

Main device weight

1.52kgnet weight
