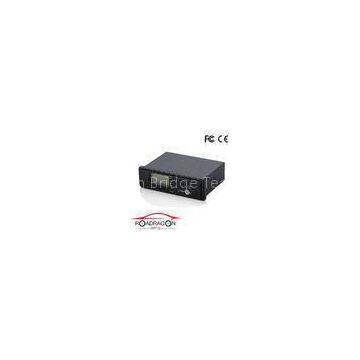

Vehicle Driving Recorder Digital Tachograph Systems With 4 Cameras

Vehicle Driving Recorder Digital Tachograph Systems With 4 Cameras

Product Functions:

1.Image: adopt H.264 technology to achieve the

monitoring by 4 routes real time image, store image at regular time, event record, alarm record, image resolution D1/Half D1/CIFcan be select.

2.SD storage:

adopt high capacity SD card to store image, strong error correction feature, it is safety for image in the condition of inside vehicle.

3.Image transmission:

Real time transmit/monitor video via PRS/3G, double code flow to transmit, adjustable transmission rate.

4.reply image:

routes image can be synchronous replay via DVR player, eplay according with the requirements, editing and storage, characters superposition, geographic info superposition.??

5.GPS monitoring:

Automatic tracking, regions setting, geo-fence, GPS mileage statistics, vehicle mileage statistics, blind area supplementary report, traces storage, base station positioning.

6.Signal detecting and control:

8 routes switch signal input, 1 route vehicle speed sensor’s signal input, 2 routes analog signal input, 5 routes relay control output. Intelligence mode and forced mode to cut fuel/circuit, cameras’ power source control, user-defined backup output control.

7.Alarm:

SOS, parking over time alarm, speeding alarm, speeding early warning, fatigue driving alarm, deviation alarm, lost power alarm, low power alarm.

8.Road detecting:

road detecting, road detecting calculation, departure alarm, speeding alarm, entry/exit station report…

9.Voice and phone call:

hands free phone, remote listen in, voice reminding device, TTS voice report.

10. National standard/local standard:

display communication info/vehicle driving info, collect/store info, recognize driver ID, parameters setting, import/export data and print out info.

11. Module for bus:

automatic report station/manual report station inside/outside the bus, RFID driver attendance management can be achieved by this module.

12.Display screen:

It can display the information like positioning, driving, dispatching and other data. Press key to check the message and set the menu.?

13. Remote update:

main device’s program was support to remote download; user can renew the program remotely.

14. Protection:

Power saving mode: in this mode, GPS device’s working current will drop to30mA@12V when vehicle was in flameout.

Car battery over discharge protection: it will switch to supply power by backup battery if ca
