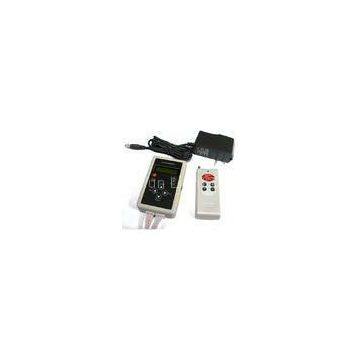

288W 8key rgb led lamps strip remote control for flexible strip light, wall washer lamp, glass curta

8key rgb led lights remote control Summarization

This controller adopts the advanced micro-control unit, it is used for controlling a variety of lamps whose source of light is LED.

For instance, point source of light, flexible strip light, wall washer lamp, glass curtain

wall light and so on; It has power-fail memory, synchronized indicator light and other functions.

At the same time, it has many advantages such as low price, easy connection and

simplicity to use. According to the actual need of customers, it can carry out jumpy changing,

gradual changing, stroboflash and other effects of changes.

Technical Parameters

1.Working temperature: -20-60 °C

2.Supply voltage: DC12V~24V

3.Output: 3 channels

4.Connecting mode:common anode(default)

5.External dimension: L121*W54*H25 mm

6.Packing size: L150*W76*H51 mm

7.Net weight: 255g

8.Gross weight: 285g

9.Max output current: 3*4A

10.Max output power: 12V:144W; 24V:288W

Direction for use

1. Connect the load wires at first, following by the power wires;

Please ensure that short circuit can not occur between connecting wires before you

turn on the power;

2. Adopt film button and RF for controlling, and there are 8 buttons in all.

The funtion of each key as follows(the symbol between ‘[ ]’ is remote control methode):

[ON/OFF]: you could turn on/off controller at any time

[PAUSE]: Play/pause button; It is convenient for you to see the static effection of led;

S+: The step of the speed will add one by each press

S-: The step of the speed will subtract one by each press

B+: Brightness control button; The step of the brightness will add one by each press

B-: Brightness control button; The step of the brightness will subtract one by each press

M+: Program choosing button, up direction

M-: Program choosing button, down direction

Attentions:

1. Supply voltage of this product is DC12V~24V; never connect to AC220V;

2. Never connect two wires directly in case of short circuit;

3. Load wires should be connected correctly according to the connecting diagram offers;

4. Don\'t peel off the label on the controller in case any indication of information will be missed;

5. Warranty of this product is one year. In this period,

we guarantee replacement or repairing with no charge,

but exclude the artificial situation of damaged or overload working.
