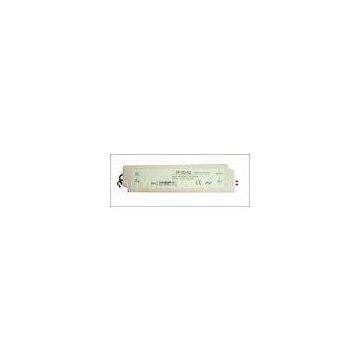

LED Lighting 60 Watt Constant Voltage LED Driver IP67 24V DC , High Reliability
- T/T L/C D/P D/A
- 7 days
You May Like
-
1500mA 50 Watt Black Constant Current LED Driver Plastic Case , 36V LED Driver Power Supply
-
Efficient 220 V AC Constant Current AC To DC LED Driver 300mA With OLP / OVP
-
50Hz Switching Power Constant Current Outdoor LED Driver 600mA 20W , Single Output
-
18 Watt 300mA 220 Volt Constant Current LED Driver EMC With 30V - 60V DC
-
Single Output 20W Constant Voltage LED Driver Waterproof 24V 12V LED Driver
-
Waterproof IP67 60W Constant Voltage LED Driver 120V AC , Isolated Plastic Case
Product Details
| Brand Name | XingYun | Place of Origin | China | |
| Model Number | PF-60-12 |
Product Description
Certification:ISO
Overload Protection 60W Constant Voltage LED Driver IP67 High Reliability
Quick detail:
Power: 60W
Input: AC110-264V
Output: DC 12V 24V
Size: ?160*41*32
Certificate: CE&ROHS?
Warranty: 2 years
Description:
1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
Descriptions:
|
Parameter |
Model: PF-60 |
|
|
DC output voltage |
12V±5% |
24V±5% |
|
Rated output current |
5A |
2.5A |
|
Output current range |
0-5A |
0-2.5A |
|
Ripple and Noise |
120mVp-p |
|
|
DC output power |
60W |
60W |
|
Efficiency |
85% |
85% |
|
Input voltage range |
110-240V AC |
|
|
Short-circuit protection |
Damage free short-circuit protection 3 times or more with automatic restoration |
|
|
Overload protection |
105-150% hiccup with automatic restoration |
|
|
efficient |
±0.03%℃ ( 0-40℃ ) |
|
|
Voltage tolerance |
Input-output range: 1.5KvAC |
|
|
Working environmental temp. |
-10℃~+40℃ |
|
|
Waterproof grade |
IP67 |
|
|
Input frequency range |
47Hz~63Hz |
|
|
Storage temperature |
-20℃~+85℃ |
|
|
Dimension |
160*41*32 mm |
|
|
weight |
0.38 kg |
Features:
* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Epoxy encapsulated with IP67 level
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty
LED lighting 60 Watt Constant Voltage LED Driver IP67 24V DC , High Reliability
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
