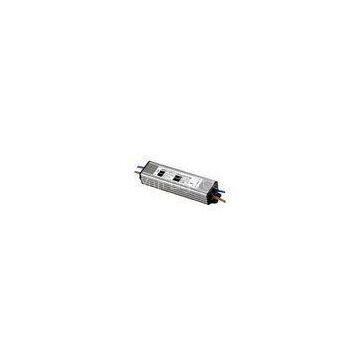

18 Watt 300mA 220 Volt Constant Current LED Driver EMC With 30V - 60V DC

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 0 per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	XingYun		Place of Origin	China
Model Number	HF-018-65-30-0A30

Product Description

Delivery Time:7-15days
Certification:ISO

?
18 Watt 300mA 220 Volt Constant Current LED Driver EMC With 30V - 60V DC
?
?
Quick detail:
?
Power : 18W
Input:AC90-264V
Output:320mA 2~12V
Size:?90*30*20(mm)
Certificate: CE&ROHS?
Warranty: 2 years
Features:
?
Universal AC input/Full range
Protections: Short circuit/OLP/OVP
Meet EMC standards
100% full load burn-in test
High efficiency,long life and high reliability
IP67 design for indoor and outdoor
12W 300mA 220 Volt Constant Current LED Driver EMC With 30V - 60V DC
?
Specifications:
?

Model	HF-018-65-30-0A30
Output	Dc Voltage	30~60V±5%
Rated Current	300mA
Rated Power	18W
Ripple&Noise(Max)	180mV
Current Tolerance	±20mA
Setup,Rise Time	100ms/220VAC
Hold Up Time(Typ.)	80ms/220VAC
Input	Voltage Range	90~264VAC
Frequency Range	47~60Hz
Power Factor(Typ)	PF>0.5/220VAC
Efficiency(Typ)	83%
Ac Current(Typ)	?0.25A/235V?
Inrush Current(Typ)	Cold-start current 0.7A/235V
Protection	Short Circuit	Protection type:recovers automatically after fault conditions is removed
Overlaod	Overload protection@145~160%above peak rating
Over Temperature	protection typer:shut down o/p voltage.re-power on to recover
Environment	Working Temp	-30~ +60℃(Refer to output load derating curve)
Working Humidity	20~90%RH no-condensing (Waterproof)
Storage Temp Humidity	-40~ +80℃,10~90%RH
Safety&Emc	Safety Standards	CE Mark(LVD),IP67
Withstand Voltage	I/P-O/P:1.5KVAC?? IP-GND:1.5KVAC
Emc Test Standards	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 EN 61347-1:2008 EN 61347-2-13:2006
NOTE	1.All parameters NOT specially mentioned are measured at 220VAC input,rated laod and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a12\'\'twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.

?
?
Application:
It’s suitable for an extremely wide range of applications, including:

LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Quality?assurance:

Delivery:
