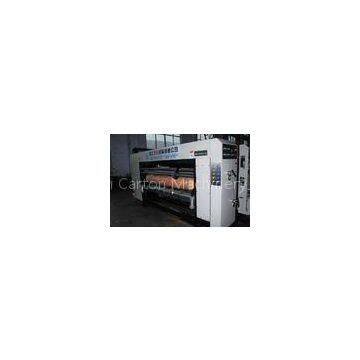

Custom Printing Paper Carton Box Making Machinery ,Automatic Creasing Machine

Custom?Printing?Paper?Carton?Box?Making?Machinery?,Automatic?Creasing?Machine

Material:?Steel

Packaging?Type:?Pallet

Driven?Type:?Electric

Automatic?Grade:?Automatic?

Voltage:380V?50HZ

Power:25KW

Application:?To?make?all?kinds?of?corrugated?carton?box?

Main Technical Parameter

Functions:

1.International famous-brand electric parts and computer software are used in the whole machine of stable

and reliable quality,in the human-computer interface where zeroing can be adjusted at one time with

automatic memory reposition.

2.The whole machine baffle and key parts are all treated by tempering to decrease the metal internal force

and all made in the high-precision processing centre and grinded by the numeric-controlled grinder.

3.All the axles and rollers of the whole machine are made of high-quality steel and treated by tempering

and grinding followed by high-precision computer dynamic balance rectification. They are all plated with

rigid chrome and grinded surface.

4.All transmission gears are made by 20CrMnTi alloy steel, which is grinded after heat-treatment, rigidity

HRC58-62,and which is made by rubbing,6 grade precision to maintain high topping precision after long

using.

5.All transmission parts (connected with the axles and gears) adopt the hand-free connecting ring to

eliminate the interval, suitable for long-term high-speed running.

6.All transmission bearings adopt strengthened model bearing, equipped with dustproof windtight parts and

the oiling, handy to maintenance, lasting for longer using.

7.The whole machine undergoes automatic spray lubrication, with intuitionistically showing facilities and

double oil pipe balance system.

8.The whole machine runs with the adjustment presetting function, feeding, printing, slotting, die cutting all

featuring auto- zeroing and memory automatic reposition.

9.The whole machine working interval adjustment adopts fast spanner-free adjustment and the

electromagnetic brake system with the worm wheel and worm setting operates fast and conveniently.

10.The mainframe chooses control by conversion frequency ,with more stable and energy-saving

start-up and running.

11.Option for the vacuum adsorption, kick feeding or leading edge feeding.

12.Optional equipments :ceramic anilox ro
