WJ100-1600 5ply Corrugated Production Line Parts List and Technology Parameter

Main Technical Parameter of Production Line

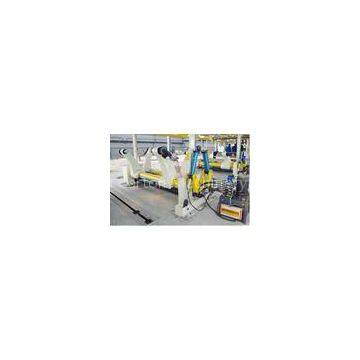

Item:WJ100-1600 5-layer Corrugated Cardboard Production Line

1,Design speed:100m/min

2,Economic speed:60-80m/min

3,Working width:1600mm???

4,production line length: about 72m (exact length according to the groud drawing)

Note: The roll paper which is used to test the production speed should meet following

requirements:

*Grade: Min. B?????? ??????*? Moisture content:11% ± 1%

*Face paper: ?150~200g/ m2? *? Liner paper:150~200g/ m2

*Corrugated paper: 105~180g/ m2

?5,Flute profiles: A, B, or according to client`s requirements

6,Steam requirements:

Steam quantity: 2200－3200Kg/Hr?? Max. pressure: 1.6Mpa

Normal pressure: 0.98－1.12MPa

7,Electricity: 380V? 50Hz????? three-phase, or four phase

8,the whole power:180KW?? machine prime power :120KW

9,Shop area that machinery requires: About 72m×8.2m×3.8m(length x width x height)

10,Equipment Direction:Left or Right transmission will be according to client`s requirements.

Note: Customer`s self –provided parts

1,Steam heating system: one set of boiler of 4000Kg/Hr, pressure 1.4－1.6MPa

Steam pipelines above valves and steam back, water drainage pipelines

2,Compressed air pipelines, glue pipelines

3,Power, electrical wire to operation box

4,Water pipelines, water barrel

5,Water, electricity, steam ground foundation

6,Raw material ( paper roll, corn starch, caustic soda, sodium borax) to test machinery

7,Engine oil, lubricating oil, hydraulic oil, lubricating and high-resisting lubricating

8,Installation and commissioning persons accommodation, and person arrangement

WJ100-1600 5Layer Corrugated Line Price List
