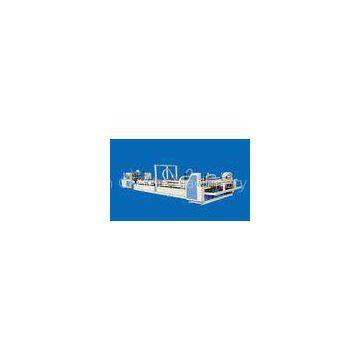

Paperboard Carton Box Making Machine , Automatic Folder Gluer

Paperboard?Carton?Box?Making?Machine?,?Automatic?Folder?Gluer

Material:?Steel

Packaging?Type:?Pallet

Driven?Type:?Electric

Automatic?Grade:?Automatic

Voltage:380V?50HZ

Power:11.5 KW

Application:?To?make?all?kinds?of?corrugated?carton?box?

Specifications:

QF-AFG series automatic folder gluer machine consist of three sections: vacuum feeding section, gluing

and folding section, counter and stacker section. Frequency conversion motor with quality inverter adjusts

speed. PLC and Touch screen control system for easy operation and running stable. Average speed is

150sheets/min. Energy conservation and high speed, saving labor cost.

Vacuum feeding section

1. Vacuum suction feeding to feed warping paperboard easily

2. Quality electromagnetic clutch and brake adopted, feeding section controlled independent, operation

easily

3. Scorer wheel adjustable, suit for 2-8mm thick paperboard

4. Second creasing struction can impress again the paperboard which was not creased well

Gluing and folding section

1. Simpless structure and high reliability, glue quantity adjustable, cleaning easily

2. Stainless steel glue wheel adopted, long life and saving glue cost

3. Imported quality rubber belt adopted, automatic folding

4. with paperboard rectify device and creasing rectify device

Counter and stacker section

1. Stacking and counting are simple and reliable

2. Digital control, operation easily and reliable. No-stop put in data and automatic counting

3. with rectification counting and put out by pneumatic, stable and quickly

Main technical parameter:
