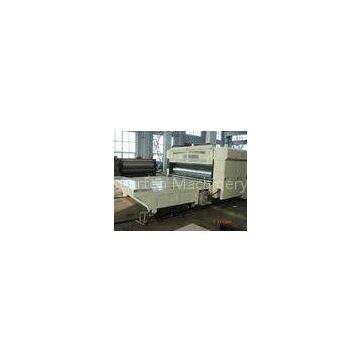

Automatic Corrugated Box Making Machine Grinded / Rotary Printing
- T/T L/C D/P D/A
- 7 days
You May Like
-
Chain Feeding Corrugated Box Making Machines With Pneumatic Brake
-
Automatic Corrugated Box Making Machines Die Cutting High Precision
-
Automatic Corrugated Carton Box Making Machine With 25001100mm Paper Size
-
Trash Cleaning Corrugated Box Printing Machine 150pcs/min
-
Semi-Automatic Carton Cutting Machine For Die Cutter Machine
-
5 Layer Corrugated Cardboard Production Line For Carton Making Machine
Product Details
| Brand Name | XINTIAN | Place of Origin | China | |
| Model Number | XT-L |
Product Description
Certification:CE,ISO9001:2000
?
?
Automatic Corrugated Box Printing Machine Grinded / Rotary
?
Packaging?Type:?Pallet
Driven?Type:?Electric
Automatic?Grade:?Semi?automatic?
Voltage:380V?50HZ
Power:18KW
Application:?To?make?all?kinds?of?corrugated?carton?box
?
Main Technical Parameter
?
SERIAL | WYAZS NAME | UNIT | WYAZS |
2500×2800 |
|||
1 | Inboard width | Mm | 3200 |
2 | verage size | Mm | 2500×3100 |
3 | verage size | Mm | 600×500 |
4 | Max.printing area | Mm2 | 2450×2800 |
5 | Thickness of printing plate | Mm | 6 |
6 | Max.speed | Pieces/min | 50 |
7 | Power of main motor | Kw | 11 |
8 | Size for whole machine | Mm | 6000×4200×2500 |
9 | weight | T | 15 |
?
?
Functions and Features:
?
1. Chain feeding model can ensure that the bent board paper be smoothly sent due to the elastic pressing
plate at the front of feeding system.
?
2. Motorized detachment and combination; pneumatic locking and loosening of printing units; automatic ink
distribution and pneumatic brake separation orientation.
?
3. Printing and slotting phase is adjusted by planetary-gear electric phase, shown by digit.
?
4. Whole machine uses the gear pumping automatic lubrication.
?
5. Ink roller and printing pressing roller are connected by cross slide to ensure steady transmission.
?
6. All axles and rollers are plated with rigid chrome and grinded surface.
?
7. The whole machine adopts the electric parts from CHINT and DELIXI; Whole machine bearing is from the
Harbine Bearing Group.
?
8. Option of printing slitting and creasing or printing slotting.
?
?
