Home > Products > Cold Rolling Mill > Rigid 20 High Cold Rolling Mill Machinery , High Precision Stainless Steel Rolling Mill

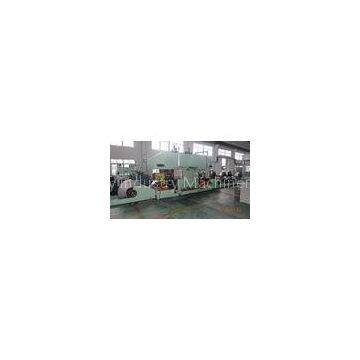

Rigid 20 High Cold Rolling Mill Machinery , High Precision Stainless Steel Rolling Mill
- T/T L/C D/P D/A
- 7 days
You May Like
-
4 Stand Tandem Rolling Mill , Carbon Steel Strip Continuous Rolling Mill
-
Hardened Temper Rolling Mill Four Roller For Carbon Steel High Elasticity
-
Stainless Steel Tension Leveling Line For Steel Strip Edge Wave Removal
-
Hydraulic Electric Controller Copper Strip Rolling Mill High Efficiency
-
Casting Aluminium Rolling Mill , Cold / Hot Four High Rolling Mill Machine
-
Carbon Steel 6 Hi Cold Rolling Mill , Hydraulic Pressure Down Cold Rolling Machine
Product Details
| Brand Name | WUYE | Place of Origin | China | |
| Model Number | BL20-225 |
Product Description
Certification:ISO2000
Rigid 20 High Cold Rolling Mill Machinery , High Precision Stainless Steel Rolling Mill?
Features and applications
?
Suitable for rolling high strength alloy steel,stainless steel,silicon steel and steels of extremely thin and high precision.
Comparing with four-high cold mill,six-high cold mill and traditional 20-high cold rolling mill with frame directly pressing down ,It has the following notable features.
1. With whole cast frame, high rigid, rolling pressure radiate on the various section of the frame.
2. With small working roll diameter,large pressure rate of rolling routes and total pressure rate.
3. With pagoda shape roll assembly, structure of various section support back up roll, high rigid, less deformation and products with good plate shape and high precision.
4. Small volume, light weight it's only one second of the other same type rolling machines.
5. High precision, the guarantee of manufacturing precision of 8 plum blossom shape channels on the frame is the key of the product.
?
Components
Pay-off reel--head straightening unit --left tension reel --devices previous mill--main mill--devices posterior mill--right tension reel--upper unloading car.
Technical parameters
?
| nominal dia. of work roll | back lining bearing dia. | strip width | Min. product thickness | thickness precision |
| 40ram | 225mm | ≤650mm | 0.06-0.08mm | ±0.002mm |
