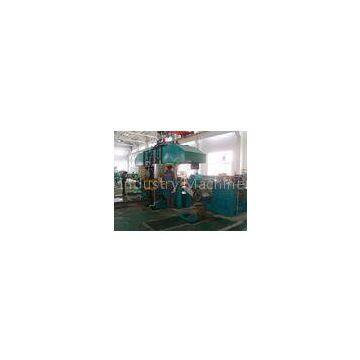

Carbon Steel Four High Rolling Mill , 300T Reversing Cold Rolling Mill
- T/T L/C D/P D/A
- 7 days
You May Like
-
450mm Electric Temper Rolling Mill , Carbon Steel Two High Rolling Mill
-
500mm 4 High Tandem Rolling Mill 4 Stands Speed 240m Per Minutes
-
4 High Reversing Cold Rolling Mill Stainless Steel Tension Reel 120 KN
-
750mm Electric 6 Hi Cold Rolling Mill , Stainless Steel Rolling Mill Machine
-
650mm Four High Cold Rolling Mill Equipment , 150m/min Aluminum Roll Mill Machine
-
600mm 4 Hi Tandem Rolling Mill Carbon Steel 3 Stand Speed 180 M/Min
Product Details
| Brand Name | Wuye | Place of Origin | China | |
| Model Number | 450 |
Product Description
Certification:ISO2000
Carbon Steel Four High Rolling Mill , 300T Reversing Cold Rolling
I Technical conditions:
1. Material: low and Medium carbon steel
2?Input specification: Thickness H≤ 3.2mm, Width B≤ 350 mm;
3?Product specification: Thickness H≥0.3mm, Width B≤ 350 mm;
4?Coil ID/ OD: φ500/φ2000mm;
5?Max. Coil weight: W= 7000Kg;
6?Max. Rolling force P ≤3000 KN
7?Max. Rolling speed: V ≤200 m/min;
8?Max reeling tension: T ≤40 KN;
9.?Rolling line elevation: +850mm;
10.?Line direction: from left to right.
II Main equipments
1. main mill: one set
2. technical table two sets
3. roller changing device one set
4. solid reel drum two sets
5. collapsilbe payoff reel without power one set
6. leveller one set
7. hydraulic 4-segment coiler(for rewinding line) one set
8. technical table for rewinding line one set
9. solid payoff reel for rewinding line one set
10. loading/unloading device two sets
11. hydraulic system one set
12. thin oil lubriation station one set
13. coolant system (user’s scope) one set
14. electric controller: ?one set
We welcome our customers to choose our products wholeheartedly
and look forward to cooperating with you.
Best products,competitive price and satisfactory &professional service
