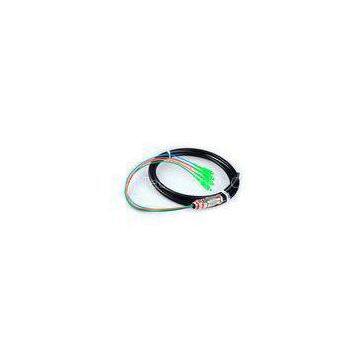

4 Core SC Fiber Optic Pigtail Cables Rodent Resistant Waterproof With Black Jacket

Brand Name	OEM		Place of Origin	China
Model Number	Waterproof Fiber Optic Pigtail

Delivery Time:3days for samples, 7-15days for bulk order
Certification:Rohs SGS ISO9001:2008
4 Core SC Fiber Optic Pigtail Cables Rodent Resistant Waterproof With Black Jacket1. Features:
The number of the core is customized
Easily mounted and high reliability
Standard 5/8-24 aluminum entry fitting is sealed with epoxy to protect against water penetration and provides>100IBS of cable pull-outer jacket.
2mm subunits guarantee maximum clearance inside node and amplifier housings
Waterproof, suitable for adverse outdoor environment
Compliant with: IEC, JIS, Telcordia
Customer length
Minimum loss
?2. Applications:
?Long Distance Optical Communication System
?FTTP
?Telecommunication Network
?CATV Network
?Local Area Network
?Active device termination
?Data system network
?FTTH CATV Optic fiber waterproof pigtail
?water proof cables includes 4c, 6c,8c; SM, MM,ST,SC,LC,DIN,MTRJ/D4/MU/E2000, Polishin
3. Specifications:

SPECIFICATION: fiber optic pigtails
Connector Type	LC/FC/ST/SC Waterproof Pigtail
Fiber Type	Single-Mode
Cable Diameter	9.8 ,11.8
Insertion Loss	PC≤0.20dB UPC≤0.20dB APC≤0.30dB
Return Loss	PC≥40dB UPC≥50dB APC≥60dB
Working Condition	-40℃ to +75℃
End Face Geometry	? ? The radius of curvature : 10-25(PC/UPC) 5-12(APC) ? Apex Offset : 0-50um Fiber height : -100 to +100nm ?
Characteristic	High precision alignment Proof erosion body Comply with ROSH Material comply with the requirement of UL 94V-0
The connector comply with the standard of NTT/TELCORDIA/IEC/ITU

?
4. FAQ:
?
1.What is your quality control?
-Quality is our soul and culture.We have 100%strict inspection and testing before shipment.We will return the money to you if there is quality problem.
?
2.Can you accept small order?
-Yes,small order is available in our company.We support new project of our customers as we know business is always from small to big.
Your sucess is my business.
?
3.Can I order samples before placing the bulk order?
-Yes,samples is certainly for your test before the bulk order.It is normal process,we always deal with other clients.
However,we will charge for a small amount of deposit in case the investment on new samples.But please donot worry, the sample deposit will refund to you when bulk order fixed.
?
4.What is the lead time for samples?
-About sample making,it usually takes 1-3days include testing to make sure its excellent.
If urgently,please kindly let us know,we will do our best to catch up with your schedule.
?
5.Can you supply customized products and logo?
-Yes,of course we can.We supply OEM&ODM service.You can send us your drawing.
Please Note:
?
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: simplex/duplex
5. Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
?
?
