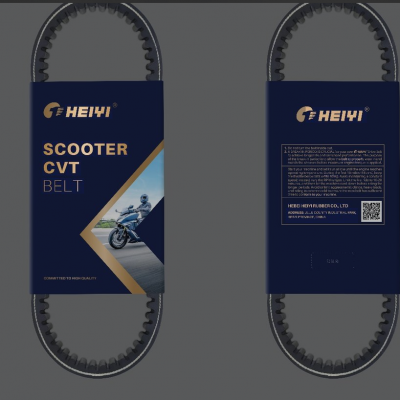

SCOOTER BELT

FOB Price

USD $1 - $10 / Piece

100 Pieces(Min.Order)

Port Tianjin
Payment TermsT/T L/C PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Rubber	Type	Toothed Belt
Feature	Anti-Static, Oil-Resistant, Cold-Resistant, Heat-Resistant, Skid-Resistance, Wear-Resistant, High Temperature-Resistance, Other	Application	Motorcycle
Standard or Nonstandard	Standard	Tensile Strength	Strong
Transport Package	carton	Origin	China

Product Description

Product Advantages
1. Sustainable use from -40 ° C to 120 ° C, slow heating and fast heat dissipation
2. Integrated molding and vulcanization process, the belt is more sturdy and stable, runs smoothly, and has less vibration
3. Rubber has superior indicators such as aging resistance and ozone resistance
4. High transmission power and wear resistance, making it less prone to elongation and wear during long-term operation

Specification of Scooter belt

NO.	OE Model number		Tooth type	Top width mm	Thickness mm	La mm
1	MITSUBOSHI	27601-09J20	Single	19.7-19.9	7.9-8.0	797-798
2	MITSUBOSHI	27601-46G10	Single	19.6-19.7	9.7-9.8	807
3	YAMAHA	B65-E7641-00	Single	24.2-24.4	10.5-10.7	889
4	YAMAHA	2DP-E7641-00	Single	25.9-26.0	10.3-10.5	904
5	YAMAHA	B8R-E7641-00	Single	24.3-24.4	10.3-10.4	888
6	YAMAHA	5TL-E7641-01	Single	18.4-18.5	9.0-9.2	841-842
7	YAMAHA	2PH-E7641-00	Single	21.7-21.9	8.4-8.6	808
8	YAMAHA	54P-E7641-00	Single	18.4-18.7	9.3-9.4	813-814
9	YAMAHA	B8R-E7641-00	Single	24	10.6	888
10	YAMAHA	B5X-E7641-00	Double	25.8-26	14.4-14.7	983
11	HONDA	23100-K2S-N010-M1	Double	23	11	864
12	HONDA	23100-KOJA-N010-M1	Double	20	10.5	815
13	HONDA	23100-K36-J010-M1	Double	21.6-21.7	10.9-11.1	840
14	HONDA	23100-K35-V010-M1	Double	22.9-23.0	10.7-10.8	839
15	HONDA	23100-K44-V010-M1	Single	19.5-19.6	8.6-8.7	812
16	HONDA	23100-KZR-6010-M1	Single	21.7-21.8	10.0-10.1	833-834
17	HONDA	23100-KZL-6010-M1	Single	18.4-18.5	9.0	796
18	HONDA（MCL）	MCL-K97-T01-005	Double	21.5-21.7	10.7- 11	865
19	HONDA（MCL）	MCL-K1A-N23-014	Double	20-20.1	10.5- 10.7	816
20	HONDA（MCL）	MCL-K1Z	Double	23.2-23.3	11.4- 11.6	868
21	YAMAHA（MCL）	MCL-B3Y	Single	21.5	8.5-8.7	756
22	YAMAHA（MCL）	MCL-2PH	Single	20.5 -20.7	9	807.5

Company Profile

Established in 1995, we are a manufacturer specializing in producing high-quality rubber raw edge cogged transmission belts; The product is mainly used in agricultural machinery, industrial equipment,automobiles and motorcycles .The company has 12 atuomated production lines, over 3000 sets of tools,and a prodcution range from 550mm to 1200mm.
