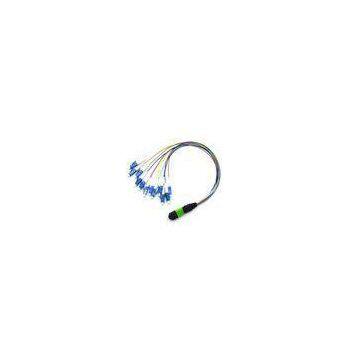

SMA E2000 MPO Fiber Cable For CATV Networks , 12 Core White OM3 OM4 Patch Cord
- T/T L/C D/P D/A
- 7 days
You May Like
-
Low PDL Stable 1X16 PLC Splitter , 900um Steel Tube Type Fiber Optic Coupler Splitter
-
PE Sheath 12 Core Optical Fiber Cable Air Blow Super Mini Fiber Optic Cable
-
Durable Fiber Optic Mechanical Splice 125um For FTTH Bare Cable / Indoor Cable
-
24 Port Fiber Optic Patch Panel 1U 19 Inch SC / LC Connector Drawer With Guild Rail
-
Professional Precision Wire Stripping Pliers , Fiber Optic Cable Stripping Tool
-
Fiber Optic Splice Closure 16 To 96 Core , Wall Mounte Optical Termination Box
Product Details
Brand Name | CFO | Place of Origin | China | |
Model Number | Diameter SM 9/125um MM 62.5/125 |
Product Description
Certification:ISO9001:2008,rohs
SMA E2000 MPO Fiber Cable For CATV Networks , 12 Core White OM3 OM4 Patch Cord
1. Features:
Inner: Ceramic Ferrule
Telcordia’s GR-326-Core, IEC Standard
Green Production, RoHS Standard
Excellent Polished and 100% tested.(5) High stability various environments(6) Customize order available Available Simplex/Duplex patch cord availableFan-out availablePigtail availableVarious boot(cable) sizes availableFC/LC/SC/ST/MTRJ/MPO connectors availableLSZH and PVC cable Applications:TelecommunicationComputer NetworksCATV networksActive device termination Technical Standard
Can choice of male,female.Achieve precise positioning with the adapter connected via
Pin-pin positioning function,high stability.
Multi-core ferrule, small size, high speed and high capacity to meet the needs of optical
fiber communication systems and high-efficiency high-density interconnect wiring.
For future network infrastructure, highly scalable, supports Ethernet and Fiber Channel
requirements 10/100-1Gbps.
2. MPO/MTP type:
? | male(with Pin),female(without Pin) |
Ferrule type | Standard SM,Low loss SM;Standard MM,Low loss MM |
Fiber core | 4core,8core,12core,24core |
Housing color | Green(SM),Beige(MM),Yellow(SM Low loss),Blue( OM3 50/125 ) |
Polishing way | PC,APC |
Cable type | Ribbon cable,Ribbon fiber,3.0mm Mini cable(250um12F,24F),0.9mm cable |
3. MPO/MTP test requests:
a.Endface request:
400 X | Defect description | Allow quantity | |
Fiber(9um,50um,62.5um) | White scratches | ≤3um | No limited |
? | Spot | ≤2um | 5 PCS |
? | Defect | / | No allowed |
Cladding (62.5-125um) |
White scratches | ≤3um | No limited |
? | ? | ≤5um | 1 PCS |
? | Black scratches | ≤3um | 2 PCS |
? | Black spot | ≤2um | No limited |
? | ? | ≤5um | 3 PCS |
? | Defect | ≤2um | Around no limited |
? | ? | ≤15um | Total length is less than the side length 1/4 |
? | Plastic ring | / | No limited |
b.Performance:
MPO/MTP | SM standard ferrule | SM low loss ferrule | MM standard ferrule | MM low loss ferrule | |
IL Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
? | Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB |
RL | APC≥50dB | ? | ≥ 25dB | ≥ 35dB | |
? | PC ≥ 40dB | ? | ? | ? | |
Repeatability | ≤0.30dB(Plug more than 500 times) | 0.30dB(Plug more than 1000 times) | |||
Interchangeability | ≤0.30dB(With either a matching connector) | ||||
Tensile strength | ≤0.30dB(Maximum tension 66N) | ||||
Shock | ≤0.30dB(10~55Hz) | ||||
Temperature Range | -40°C ~ +75°C |
c.Interference indicators:
MPO/MTP Connector | Dimension 3D Test |
Radius of Curvature | X ≥2000mm ,Y ≥50mm |
Fiber Height | 1000~4000 nm |
Endface Angle | X ±0.3° ,Y ±0.3° |
Core Dip | ±300nm |
d.Length Tolerance:
Length(M) | Tolerance |
≤10 | + 10CM |
10<L≤30 | + 15CM |
>30 | + 10% |
4. Application:
Telecommunication
Co
