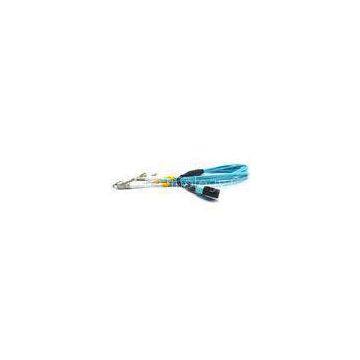

OM3 / OM4 MPO Patch Cord 12 Core 5M Simplex / Duplex 10G Fiber Optic Cable
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
FTTH Telecom MPO Patch Cord Blue 8 Core 12 Core Fiber Optic Cable APC Polishing
-
SMA E2000 MPO Fiber Cable For CATV Networks , 12 Core White OM3 OM4 Patch Cord
-
Low PDL Stable 1X16 PLC Splitter , 900um Steel Tube Type Fiber Optic Coupler Splitter
-
PE Sheath 12 Core Optical Fiber Cable Air Blow Super Mini Fiber Optic Cable
-
Durable Fiber Optic Mechanical Splice 125um For FTTH Bare Cable / Indoor Cable
-
24 Port Fiber Optic Patch Panel 1U 19 Inch SC / LC Connector Drawer With Guild Rail
Product Details
| Brand Name | CFO | Place of Origin | China | |
| Model Number | CFO-MPO Patch Cord |
Product Description
Certification:ISO9001:2008,rohs
OM3 / OM4 MPO Patch Cord 12 Core 5M Simplex / Duplex 10G Fiber Optic Cable
1. What is the MPO/MTP features?
IEC61754-7 & GR-1435-CORE compliant.
Modular design, plug-locking structure,easy for test,Install,remove and adjust.
Usually,single MTP / MPO connectors typically can accommodate 12 or more fiber,
1U height wiring space can accommodate up to 96 LC optical interface, Section.
Saving Cabinet and rack space, easy cable management
Kinds of fiber,cable available,to meet different customer needs.
Can choice of male,female.Achieve precise positioning with the adapter connected via
Pin-pin positioning function,high stability.
Multi-core ferrule, small size, high speed and high capacity to meet the needs of optical
fiber communication systems and high-efficiency high-density interconnect wiring.
For future network infrastructure, highly scalable, supports Ethernet and Fiber Channel
requirements 10/100-1Gbps.
2. What is the MPO/MTP type?
| ? | male(with Pin),female(without Pin) |
| Ferrule type | Standard SM,Low loss SM;Standard MM,Low loss MM |
| Fiber core | 4core,8core,12core,24core |
| Housing color | Green(SM),Beige(MM),Yellow(SM Low loss),Blue( OM3 50/125 ) |
| Polishing way | PC,APC |
| Cable type | Ribbon cable,Ribbon fiber,3.0mm Mini cable(250um12F,24F),0.9mm cable |
3. What is the MPO/MTP test requests?
a.Endface request:
| 400 X | Defect description | Allow quantity | |
| Fiber(9um,50um,62.5um) | White scratches | ≤3um | No limited |
| ? | Spot | ≤2um | 5 PCS |
| ? | Defect | / | No allowed |
| Cladding (62.5-125um) |
White scratches | ≤3um | No limited |
| ? | ? | ≤5um | 1 PCS |
| ? | Black scratches | ≤3um | 2 PCS |
| ? | Black spot | ≤2um | No limited |
| ? | ? | ≤5um | 3 PCS |
| ? | Defect | ≤2um | Around no limited |
| ? | ? | ≤15um | Total length is less than the side length 1/4 |
| ? | Plastic ring | / | No limited |
b.Performance:
| MPO/MTP | SM standard ferrule | SM low loss ferrule | MM standard ferrule | MM low loss ferrule | |
| IL Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| ? | Max | 0.75dB | 0.35dB | 0.65dB | 0.35dB |
| RL | APC≥50dB | ? | ≥ 25dB | ≥ 35dB | |
| ? | PC ≥ 40dB | ? | ? | ? | |
| Repeatability | ≤0.30dB(Plug more than 500 times) | 0.30dB(Plug more than 1000 times) | |||
| Interchangeability | ≤0.30dB(With either a matching connector) | ||||
| Tensile strength | ≤0.30dB(Maximum tension 66N) | ||||
| Shock | ≤0.30dB(10~55Hz) | ||||
| Temperature Range | -40°C ~ +75°C | ||||
c.Interference indicators:
| MPO/MTP Connector | Dimension 3D Test |
| Radius of Curvature | X ≥2000mm ,Y ≥50mm |
| Fiber Height | 1000~4000 nm |
| Endface Angle | X ±0.3° ,Y ±0.3° |
| Core Dip | ±300nm |
d.Length Tolerance:
| Length(M) | Tolerance |
| ≤10 | + 10CM |
| 10<L≤30 | + 15CM |
| >30 | + 10% |
4. Carefiber Offer:
Quality always comes first;
Standard quality tests che
