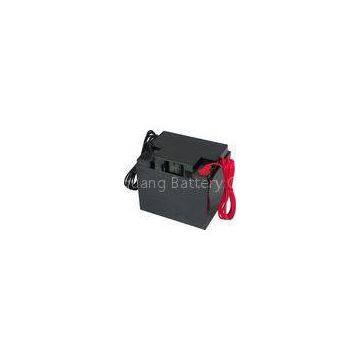

Solar System 12V Sealed Rechargeable Battery High Configuration

Solar System 12V Sealed Rechargeable Battery High Configuration

Description:

● Designed life is 5~8 years (20℃);

● High tin alloy, imported colloid electrolyte and special lead plaster;

● Wide temperature scope of application (-30~45℃);

● Best temperature of application (20±5℃);

● No leaking, safe and reliable;

● Standing or lying down for using, convenient to transport and install;

● Good performance on long-term insufficient charge and frequency discharge;

● The battery with unique waterproof technical treatment cables ensure the stable operation of solar street lamp products.

● Low self-discharge rate.

STORAGE

● Batteries should be stored in dry and clean warehouse which has good air exchange system. Batteries should avoid direct sunlight. Batteries should not be near to heat (such as radiator, the distance should more than1m). Batteries should avoid any toxic gas and organic solvent.

● Batteries should be recharged within the storage life or before using.

Charging methods: maximum charging current 8A, constant voltage 2.45±0.05V/cell (25℃);

Charging time: 15~20h; Temperature compensation coefficient: -5mV/℃/cell.

TECHNICAL FEATURES:

? Sealed Construction

The unique construction and use waterproof battery cable to offer reliable guarantee for stable operation of solar street lamp products.

? Electrolyte Suspension System

All batteries utilize an electrolyte suspension system consisting of a high porosity, glass fiber material which in conjunction with plates, totally absorb and contain the electrolyte.

? Gas Recombination

CGB batteries incorporate a built-in design that controls gas generation and induces recombination of more than 99% of gases generated during float or cyclic usage.

? Maintenance Free Operation

There is no need to check specific gravity of the electrolyte or add water to batteries during float service life. In fact, there is no provision for this type of maintenance.

? Low Pressure Valve Regulated System..

All batteries are equipped with safety release valves, designed to operate between 1.5 and 6 psi (10-40kPa) and automatically reseal. Hence, there is never an excessive accumulation of gas within the battery.

? Heavy Duty Grids

Heavy duty lead calcium tin alloy grids provide an extra margin of performance and service life in either float or cyclic applications.

? Self Discharge - Shelf Life

The self discharge rate at room temperature is approximately 3% of rated capacity per month.

? Operating Temperature

CGB Batteries may be operated over a broad range of ambient temperatures.

? Deep Discharge Recovery

The batteries recover their capacities even after repeated deep discharges.

Applications:

● Solar system

● Telecommunication

● Banks & Financial Centre

● Hospital& Testing Laboratories

●Power source for Power-assist vehicle, electromotive tool and toys

●Standby power of solar energy system

●Cable Television

●Medical Equipment

Caution
(1) The valve regulated sealed lead acid battery is maintenance free and without acid adding, any top cover opening is forbidden during use.
(2)Battery should be charged once every 6 months after leaving the factory.
(3)Checking the battery appearance before using, and avoid strong vibration or mechanical damage.
(4)Recommend recycling using temperature 25℃ ± 5% , the battery is strictly prohibited get wet in the rain and soaking.
(5)Battery installation and removal should be uniform stress, stress at the shell should be part of the battery, avoid damage the terminal.
