10 - 30 mw Output Power Coaxial Pigtail 808nm Laser Diode For Light Source
- T/T L/C D/P D/A
- 7 days
You May Like
-
650nm High Power Coaxial Pigtail Red Laser Diode Sensor And Light Source
-
Red Visible Light 635nm Laser Diode With Coaxial Pigtailed Package
-
Butterfly 980nm Laser Diode Module , 14pin 980nm Pump Laser Hermetically Sealed
-
Coaxial Pigtailed Red Visible Light 850nm Laser Diode Module for Light Source
-
High Power 980nm Laser Diode 10 - 30 mw , Coaxial Pigtail Laser Diode
-
EDFAs / CATV 980nm Single Mode Pump Laser Module With High Output Power
Product Details
| Place of Origin | China | |
| Model Number | 808nm laser diode |
Product Description
Certification:RoSH ISO9001

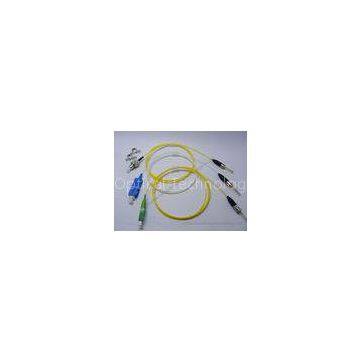

10 - 30 mw Output Power Coaxial Pigtail 808nm Laser Diode For Light Source
808nm?Pigtailed?Components
Features
1. Wavelength is?808nm(Typ.)
2. Output?power is?10~30mW
3. Threshold?current is?Ith=30mA(Typ.)
4. Operating?voltage is?Vop=1.8V(Typ.)???
5. Package is?Coaxial?Pigtail?φ6.0mm
Applications
Light?source
Absolute?Maximum?Ratings
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
|
Fiber?Output?Power |
Po(CW) |
50 |
mW |
|
|
Forward?Current(LD) |
If(LD) |
200 |
mA |
|
|
Reverse?Voltage(LD) |
Vr(LD) |
2 |
V |
|
|
Forward?Current(PD) |
If(PD) |
2 |
mA |
|
|
Reverse?Voltage(PD) |
Vr(PD) |
15 |
V |
|
|
Storage?Temperature |
Tstg |
-40 |
85 |
℃ |
|
Operating?Temperature |
To |
-10 |
60 |
℃ |
|
Lead?Solder?Temperature |
- |
260 |
℃ |
|
|
Lead?Solder?Time |
- |
10 |
S |
Optical?&?Electrical?Characteristics
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
Output?Power |
Po |
10 |
30 |
mW |
|
|
Threshold?Current |
Ith |
20 |
40 |
mA |
|
|
Opersting?Current |
If |
60 |
140 |
mA |
|
|
Opersting?Voltage |
Vf |
1.8 |
2.2 |
V |
|
|
Monitor?Current |
Im |
200 |
800 |
uA |
|
|
Cent?Wavelength |
λc |
805 |
815 |
nm |
|
|
Spectral?Width(RMS) |
Δλ |
2 |
3 |
nm |
|
|
Spectral?Shift |
Δλ/ΔT |
0.2 |
nm/℃ |
||
|
Fiber |
SM(4um?or?9um),MM,other |
Pin?Assignment
Drawing
Order?Information
S808-XXXXX
|
S |
808 |
-X |
X |
X |
X |
X |
|
Mode |
Wavelength |
Connector |
Fiber |
Pin?Type |
Pigtail?Length |
Power?Range |
|
808:808nm |
1:FC/APC 2:FC/PC 3:SC/APC 4:SC/PC 5:ST/PC |
S4:SM?4um S9:SM?9um M5:MM?50 M6:MM?62.5 |
