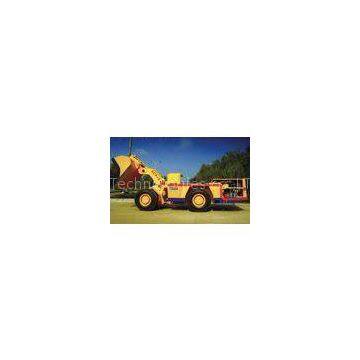

ACY-3 Diesel LHD underground mining vehicles wheeled shovel machine
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Diesel LHD with Underground Mining Loader 727Nm / 1400rpm Maximum torque
-
Underground dump truckWith load haul dump SAHR Braking system
-
Diesel engine Underground LHD Mining Equipment for transporting excavated rock
-
Excellent underground mining equipment manufacturers hydraulic torque converter
-
Electrical system Underground Mining Vehicles / Mining Utility Vehicles
-
Underground Mining Loader / Load Haul Dump Truck 75.9 L/min limited - slip differential
Product Details
| Brand Name | Sinome | Place of Origin | China | |
| Model Number | ACY-3 |
Product Description
Certification:KA
ACY-3 Diesel LHD underground mining vehicles wheeled shovel machine?
ACY-3 Diesel LHD is mainly used in underground mine, particularly for transporting excavated rock. This machine employs DEUTZ water-cooled low-pollution engine which is advanced in today\'s world and is deployed with dry-type platinum exhaust cleaner and silencer provided by ECS. Its transmission system uses the hydraulic torque converter and power-shift transmission provided by DANA. Braking system uses SAHR braking system, and equipped with fully enclosed multiple wet discs brake and NO-SPIN limited-slip differential for safe and reliable operation in poor environments. Operating system and steering system adopt interflow technology Which greatly improved the efficiency of production.The vehicle hydraulic system mainly adopts the components rovided PARKER. The well-designed main frame structure ensures ruggedness and high efficiency.?
|
Weights |
Operating weight |
16,140kg |
|
Total loaded weight |
23,140kg |
|
|
Operating capability |
Maximum tractive effort |
175kN |
|
Breakout force |
119kN |
|
|
Tipping load |
14,500kg |
|
|
Bucket SAE std |
3.0m3 |
|
|
Operating time |
Raising time |
6.2s |
|
Lowering time |
4.2s |
|
|
Tiping time |
8.0s |
|
|
Speed |
1st Gear |
4.7 km/h |
|
2nd Gear |
9.4km/h |
|
|
3rd Gear |
18.4km/h |
|
|
Engine |
Diesel engine |
DEUTZ BF6M1013EC |
|
Output |
148kw/2300rpm |
|
|
Maximum torque |
727Nm/1400rpm |
|
|
Driver cab |
Meet American SAE Heavy duty Canopy ROPS/FOPS Standard |
|
|
Transmission system |
Torque converter |
DANA C270 |
|
?Transmission |
DANA R32000 |
|
|
?Axles |
DANA 16D |
|
|
Tires |
17.5-25-20 L-5S TT |
|
|
Electrical system |
System voltage |
DC24V |
|
Alternator |
28V/55A |
|
|
Starter |
4.0kW/24V |
|
|
Batteries |
two,12 V / 135 Ah |
