Product Details
| Brand Name | Sinome | Place of Origin | China | |
| Model Number | ACY-4 |
Product Description
Certification:KA
10 cubic meter Diesel LHD underground mining machinery DC24V for construction railways?

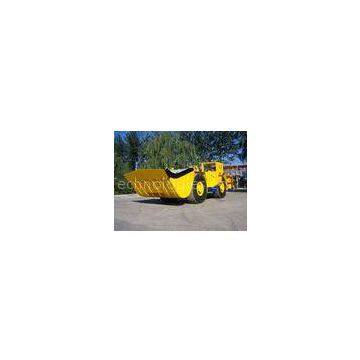

ACY-4 Diesel LHD is mainly used in underground mine, particularly for transporting excavated rock.
It can also be used for the construction of railways, highways, water conservancy and other tunnel projects .
It is particularly suitable for poor working conditions, narrow operating site , and muddy operating surface. This machine employs CUMMINS engine which adopt high efficiency high pressure common rail,electronic confrol.
Its transmission system uses hydraulic torque converter and power-shift transmission provided by DANA. Braking system uses full-hydraulic system and SAHR braking system while equipped hand-operated valve controls steering while pilot valve controls lift and dump.
The well-designed main frame structure ensures ruggedness and high efficiency.
|
Weights |
Operating weight |
25,340kg |
|
Total loaded weight |
35,500kg |
|
|
Operating capability |
Maximum tractive effort |
205kN |
|
Breakout force |
180kN |
|
|
Tramming capacity |
10,000kg |
|
|
Bucket std |
4.0m3 |
|
|
Operating time |
Raising time |
8.0s |
|
Lowering time |
6.0s |
|
|
Tiping time |
7.8s |
|
|
Speed |
1st Gear |
4.5km/h |
|
2nd Gear |
10.3km/h |
|
|
3rd Gear |
16.9km/h |
|
|
Engine |
Diesel engine |
CUMMINS QSL9 C250 |
|
Output |
186kw/2000rpm |
|
|
Maximum torque |
1085Nm/1400rpm |
|
|
Driver cab |
Meet American SAE Heavy duty Canopy ROPS/FOPS Standard |
|
|
Transmission system |
Torque converter |
DANA C5000 |
|
?Transmission |
DANA R36000 |
|
|
?Axles |
DANA 43RM175 |
|
|
Tires |
18.00-25-32 L-5S TT |
|
|
Electrical system |
System voltage |
DC24V |
|
Alternator |
28V/100A |
|
|
Starter |
7.5 kW/24V |
|
|
Batteries |
two,12 V / 200 Ah |
