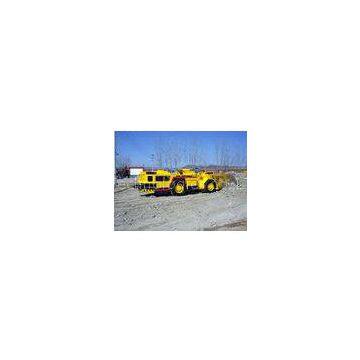

PLC LHD Mining Equipment Multi Function Bucket SAE Std 3.0m
- T/T L/C D/P D/A
- 7 days
You May Like
-
Electric LHD Underground Mining Vehicles for Dumping in Ore - Pass
-
Low Profile Dump Underground Mining Vehicles of Rock Breaking Machine
-
2.5m Rock Breaker Machine Load Haul Dump Truck 36 L/min for Poor Working Conditions
-
Underground Mining Vehicles for Rock Conveying AJK-5 LPDT Load Haul Dump
-
Underground Mining Equipment +/-40 Turning Angle For Water Conservancy Tunnel Projects
-
7.5m Box Std Underground Mining Equipment ManufacturersLHD Mining Equipment
Product Details
| Brand Name | Sinome | Place of Origin | China | |
| Model Number | ADCY-3L |
Product Description
Certification:KA
PLC LHD Mining Equipment multi function Bucket SAE std 3.0m3?
ADC Y-3L Elect ic LHD , the maximum discharging height can reach as high as 1880mm, discharging angle is 42 degrees, which not only can be used for dumping in ore-pass, but also used for assist truck transporting and discharging . It takes PLC and multi-function protection as the technical means and with the function of current on-line detection, voltage detection, ground resistance testing, phase sequence detection, volt cable-motion detection and other advanced technologies, which achieve the distribution of safety monitoring and control. By the protection of the transform of the electrical environment for on-board equipment and overload , lack phase, phase sequence wrong, leakage,it makes their controlling technology and the level of security at home and abroad to achieve the leading position.
|
Weights |
Operating weight |
19,525kg |
|
Total loaded weight |
26,525kg |
|
|
Operating capability |
Maximum tractive effort |
175kN |
|
Breakout force |
131kN |
|
|
Tramming capacity |
7,000kg |
|
|
Bucket SAE std |
3.0m3 |
|
|
Operating time |
Raising time |
7.2s |
|
Lowering time |
4.7s |
|
|
Tiping time |
6.0s |
|
|
Speed |
1st Gear |
3.8km/h |
|
2nd Gear |
7.8km/h |
|
|
3rd Gear |
15.1km/h |
|
|
Motor |
Drive motor |
YXn280M-4 |
|
Output |
90kw |
|
|
Maximum torque |
581Nm |
|
|
Driver cab |
Meet American SAE Heavy duty Canopy ROPS/FOPS Standard |
|
|
Transmission system |
Torque converter |
DANA C270 |
|
Transmission |
DANA R32000 |
|
|
Axles |
DANA 16D |
|
|
Tires |
17.5-25 L-5S TT |
|
|
Hydraulic system |
Braking distance |
2.5m with fully loaded at speed 8km/h |
|
Electrical system |
System voltage |
DC24V |
|
Lights |
2Front,2Rear |
