Underground LHD Load Haul Dump Truck Low Profile SAHR Parking Braking
- T/T L/C D/P D/A
- 7 days
You May Like
-
Diesel LHD Equipment Underground Mine Truck ACY-4 For Narrow Operating Site
-
Sinome Heavy Duty Underground Hardrock Mining Equipments Electric LHD With ROPS / FOPS Standard
-
3.0m Electric LHD Rock Breaker Machine Underground Mining Loader 42 Degrees
-
PLC Multi - Function Electric Load Haul Dump Machines Rock Breaking Machine
-
LHD Machine Rock Breaker Machine 21MPa Operating Pressure 1880mm Height
-
PLC LHD Mining Equipment Multi Function Bucket SAE Std 3.0m
Product Details
| Brand Name | Sinome | Place of Origin | China | |
| Model Number | AJK-20 |
Product Description
Certification:KA

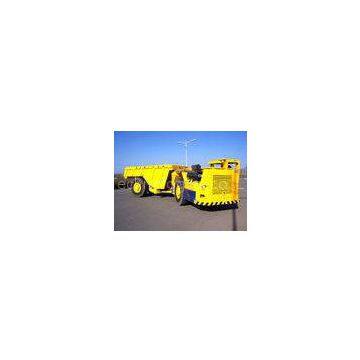

Underground LHD Load Haul Dump Truck ?Low Profile SAHR Parking braking?
AJK-20 LPDT employs the international advanced CUMMINS QSL9 engine, which is deployed with dry-type platinum exhaust cleaner and silencer provided by ECS.The exhaust emission congfirm to the EuropeⅢ emission standard.The maximum speed of the AJK-20 can reach as high as 33km/h,
and it has the powerful engine even heavily loaded for slope climbing,though has energetic traction. Its transport efficiency can realize 50 percent improvement higher than traditional truck of 20 tons.Meantime,the system can response rapidly and supply strong braking force. The major components of hydraulics system mainly employ Rexroth, Parker,Mico and other world-renowned company\'s products. Structural design employs 3-D parameters modeling
and strength analysis so as to ensure the strength of the entire vehicle.
|
Weights |
Operating weight |
19,000kg |
|
Total loaded weight |
28,000kg |
|
|
Operating capability |
Maximum tractive effort |
221.3kN |
|
Maximum grade ability |
7.8km/h fully loaded at 15% |
|
|
Dumping angle |
60° |
|
|
Box std. |
10.0m3 |
|
|
Operating time |
Discharging ?time |
12.0s |
|
Lowering time |
10.0s |
|
|
Steering time |
5.0s |
|
|
Speed |
1st Gear |
5.0km/h |
|
2nd Gear |
11.6km/h |
|
|
3rd Gear |
19.9km/h |
|
|
Engine |
Diesel engine |
Cummins QSL9 |
|
Output |
244kw/2100rpm |
|
|
Maximum torque |
1369Nm/1200rpm |
|
|
Driver cab |
Meet American SAE Heavy duty Canopy ROPS/FOPS Standard |
|
|
Transmission system |
Torque converter |
DANA CL5000 |
|
Transmission |
DANA R36000 |
|
|
Axles |
KESSLER D81 |
|
|
Tires |
16.00-25-32PR TT DNR(Z) |
|
|
Electrical system |
System voltage |
DC24V |
|
Alternator |
28V/70A |
|
|
Starter motor |
7.5kW/24V |
|
|
Batteries |
Two 12 V / 200 Ah |
