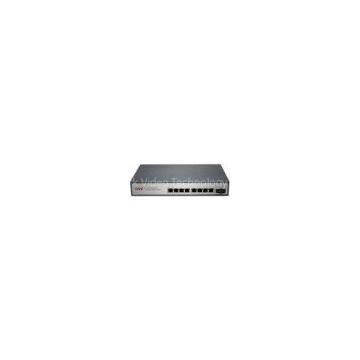

9 Port 10M 100M Switch With 4 Port POE+ and 1Port Fiber for Flexiable Application

9 Port 10M 100M Switch with 4 Port POE+ and 1Port Fiber for Flexiable Application

Quick Detail:

Name: POE Ethernet Switch, Power Over Ethernet Switch.

PoE Ports: 4

Uplink Port: Fiber port

Transmission Rate: 10 /100 Mbps.

Ethernet Standards: IEEE?802.3i?10BASET.

PoE Power Output: 25.5 Watts.

PoE Budget: 110 Watts.

Bandwidth: 1.6 Gbps.

Communication Mode: Full-Duplex & Half-Duplex.

>The PoE Switch POE31804PF-at provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The four RJ45 network ports + one fiber port can be used for any 10/100 Mbps link and four of these ports can supply industry-standard IEEE 802.3at power.

>Advanced auto-sensing algorithm gives power only to IEEE802.3at end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch POE31804PF-at automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink?.

Product features
- IEEE 802.3at power on up to 4 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
-?8 10/100 Mbps Ports with AutoUplink?
-The 9? port? is optical fiber SC interface of 155 Mbps?
- Supports PoE power up to 25.5W for each PoE port
- Supports PoE power up to110W for all PoE ports
- Supports PoE IEEE 802.3at compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 1K entry MAC address table of the PoE Switch POE31008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply?

Target Industries
-HD monitor transmission and power supply
-Wireless AP layout transmission and power supply
-Network telephone transmission , intelligent house and home system
-Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects

Specifications
