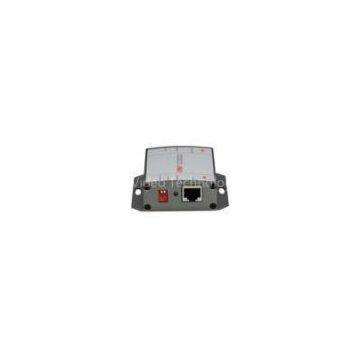

Gigabit Power over Ethernet splitter 5v and 12v for IP camera

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ONV		Place of Origin	China
Model Number	PD3101G-at

Product Description

Delivery Time:2-7 working days depending on order quantity
Certification:CE, FCC, RoHS, ISO

Gigabit Power over Ethernet ?splitter 5v and 12v for?IP camera

1: 2 10/100/1000mbps RJ45 ports,Auto MDI/MDIX,
2:IEEE802.3at standard
3:Lightning protection for ports

4:CE/FC/RoHS certificates

5:OEM accepted

6:Ex-work price available

7:Best after sales service

Our Advantages

we have our own factory, and all our workers are very experienced ones. our products are with high quaity, and we have passe CE/FC/RoHS certificates. We can offer very competitive price in the market. We guarantee best after sales service Our experts are always ready to help you when you met difficulties in actual application of our products. ?We adopt the newest and best design

Brand	ONV
Product	POE?Splitter (1?POE?In?port, 1?DC?out?port,? 1?Ethernet?Out?port)
Type	PD3101/PD3101G/PD3101-at/PD3101G-at
Network?port	2?10/100mbps?or?10/100/1000Mbps?RJ45?ports
POE?power?supply?mode	End-span?(data?pairs?1/2,3/6)?(usually?this?one)
Mid-span?(spare?pairs?4/5,7/8)
Network?Medium(POE31004)	10BASE-T:UTP?CAT3/4/5
100BASE-T:UTP?CAT5
Network?Medium(POE32004)	10BASE-T:UTP?CAT3/4/5
100BASE-T:UTP?CAT5
Performance?Specification	PSE?meet?IEEE802.3af?/?IEEE802.3at
2?DC?out?switch:?5V/12V
The?transmission?distance?is?based?on?the?POE?switch
MTBF:190,000?hours
Network?Protocol?and?Standards	IEEE?802.3i?10BASET
IEEE?802.3u?100BASETX
IEEE?802.3x?Flow?Control
IEEE?802.1af?DTE?Power?via?MDI
IEEE?802.3af
LEDs?Indicator	System:?Power,?PoE?Maximum?Power
System:?Power,?PoE?Maximum?Power
power?support	Total?power:????60W(IEEE802.3af)/?120W(IEEE802.3at)
POE?port?power:?15.4W(IEEE802.3af)/?25.5W(IEEE802.3at)
12V?1A;?5V?2A/??12V?2A;?5V?3A
Phisical?specifications	Dimension80L?x76W?x20H?mm
Weight:0.15kg
Environmental?specifications	Operating?temperature:0°Cto?55°C
storage?temperature:-20°Cto?75°C
Operating?humidity:10%?to?90%(?non-condensing?)
storage?humidity:10%?to?95%(?non-condensing?)
Quality?Ganrantee	CE?Mark,Commercial,?FCC?part?15?class?B,RoHS
Waranty	1?year?quality?guarantee

Ordering Information

PD3101	PoE Splitter, PD, IEEE802.3af,? 5/12/48V,15.4W, 10/100M
PD3101-at	PoE Splitter, PD,? IEEE802.3at, 5/12/48V, 25.5W, 10/100M
PD3101G	PoE Splitter, PD,? IEEE802.3af, 5/12/48V, 15.4W, 10/100/1000M
PD3101G-at	PoE Splitter, PD,? IEEE802.3at, 5/12/48V, 25.5W, 10/100/1000M

Accessories in the package:

Package Contents	10/100M 802.3at PoE Splitter???????????????????????????????????????????????????????????????????
DC power line
Installation guide
Warranty/Support Information card

Application Diagram
