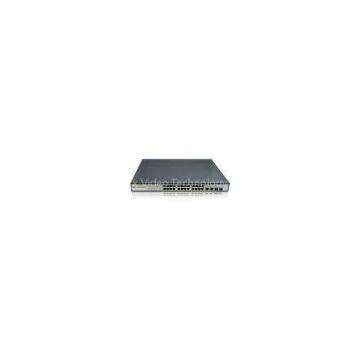

24 Port Web Smart PoE Switch With 2 Gigabit TP / SFP Combo Port
- T/T L/C D/P D/A
- 7 days
You May Like
-
5 Port IEEE 802.3af PoE Ethernet Switch 10M / 100M With 4 Port PoE & 1 Port Fiber
-
100M Network RJ45 Lightning Surge Protector For Security Monitoring Equipment
-
RS485 20KA Lightning Surge Protector For Audio / Video Signal
-
All Digita Fiber Optic Video Transceiver HDMI Optical Transmitter and Receiver
-
1000M 16 Port 30W PoE Power Injector Hub IEEE802.3at Power Over Ethernet Injector
-
1000M 24 Port 15.4W PoE Power Injector Hub Gigabit PoE Midspan Injectors for Security
Product Details
| Brand Name | ONV | Place of Origin | China | |
| Model Number | POE31024PM |
Product Description
Certification:CE, FCC, RoHS, ISO
24 ports managed POE switch
Quick Detail:
1.IEEE 802.3af power on up to 24 ports?
2. High-performance, full load power source,
3. intelligent classification system.
4. elaborate linghtning protector design.
?
|
To provide enhanced network management with cost saving benefit to customers, ONV releases the new version of the POE31024PM, the Layer 2 Web Smart Switch with PoE injector function. The POE31024PM is equipped with 16 Fast Ethernet ports integrating with PoE injector function. With 400 Watts PoE power budget, it provides a compact, affordable, safe and reliable power solution for small to medium enterprises. |
Product features
?IEEE 802.3af power on up to 24 ports?
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
?24 10/100 Mbps Ports with AutoUplink?
?Supports PoE power up to 15.4W for each PoE port
?Supports PoE power up to 370W for all PoE ports
?Supports PoE IEEE 802.3af compliant PDs
?Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
?8K entry MAC address table of the PoE Switch POE31024PM with auto-learning and auto-aging
?LED indicators for monitoring power, link, activity and speed
?External power adapter supply?
Reset button for system management
Remote Web interface for Switch management and setup
Target Industries
HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Network telephone transmission , intelligent house and home
system
Intelligent transportation supervisory system(ITS)
?High-speed Way supervisory/Tele-Communication System
?Security protection system, TV medical treatment
?Long-distance Muti-media Schooling, Campus monitoring
?Long-distance broadcast television transmission system
?High-building Security Protection, Military Tele-Com projects
Specifications
| Product | 24-PORT 10/100 SWITCH WITH 24-PORT POE |
| Type | POE31024PM |
| Network Ports | 24 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Power Pin Assignment |
Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-) |
| PoE Distance | 100m |
| Transmission Method | Store-And-Forward |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| Performance Specifications | Bandwidth:8.8 Gbps |
| Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission | |
| Buffer memory:64M embedded memory per unit | |
| Address database size:8,000 media access control (MAC) addresses per system | |
| Addressing:48-bit MAC address | |
| Mean Time Between Failure (MTBF):190,000 hours (~ 21 years) | |
| Acoustic Noise: 0 dB | |
| Network Protocol and Standards | IEEE?802.3i?10BASET |
| IEEE?802.3u?100BASETX | |
| IEEE?802.3x?Flow?Control | |
| IEEE?802.1af?DTE?Power?via?MDI | |
| IEEE?802.3af? | |
| Status LEDs | System: Power, PoE Maximum Power |
| Per Port: Link, Activity, Speed, PoE Active, PoE Fault | |
| Power Supply | Total Power Consumption: 400 W maximum |
| PoE Watt budget: 370W | |
| IEEE802.3af Power Consumption: 370W maximum (Ports 1 – 24) | |
| AC110~265V? 50Hz | |
| Physical Specifications | Dimensions (H x W x D):44 x315 x 440mm |
| Weight:2.25kg | |
| Environmental Specifications | Operating temperature: 0 to 55°C |
| Storage temperature: -20 to 75°C | |
| Operating humidity: 90% maximum relative humidity, non-condensing | |
| Storage humidity: 95% maximum relative humidity, non-condensing | |
| Operating altitude: 10,000 ft (3,000 m) maximum | |
| Storage altitude: 10,000 ft (3,000 m) maximum |
