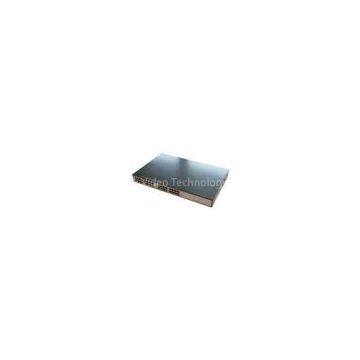

10M 100M IEEE802.3at PoE Power Injector Hub 16 Port for CCTV Security

10M 100M 16 Port IEEE802.3at 30W per port PoE Power Injector Hub for CCTV Security

Main feature:

Interface
? 32-Port RJ-45 STP
?–16-Port “Data input”
?–16-Port “PoE (Data + Power) output”
? 1 10/100Base-TX Management port with Auto MDI / MDI-X feature

PoE
? Complies with IEEE 802.3at Power over Ethernet Mid-Span PSE
? Up to?16 IEEE 802.3af devices powered
? Support PoE Power up to?30 watts for each PoE ports
? Auto detect powered device (PD)
? Circuit protection prevent power interference between ports
? Remote power feeding up to 100m
?

PoE Management
? Total PoE power budget control
? Per port PoE function enable/disable
? PoE Port Power feeding priority
? Per PoE port power limit
? PD classification detection
?

Quick and Easy PoE Network Deployment

ONV?PSE31016-at is a 16-port IEEE 802.3at Power over Ethernet Web Management Injector Hub, which complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3af standards. With?16 10/100Base-TX Fast Ethernet ports, PSE31016 supportS full 48V DC power for any remote IEEE 802.3af powered devices (PDs) such as wireless LAN access point, IP phones, and IP cameras. Supporting PoE power budget of 380 watts, PSE31016-at provides sufficient 25.5watt PoE power to?16 remote PD devices.
?

There are?32 RJ-45 STP ports on the PSE31016-at. Half of the ports function as \"Data\" and the other half? function as \"Data and Power\". Each of the \"Data and Power\" port is an injector which inserts DC voltage into the CAT 5 cable to allow the cable between the Injector and Splitter to transfer data and power simultaneously.
?

Specification:

?Ordering Information

Accessories in the package:

Connection Diagram
